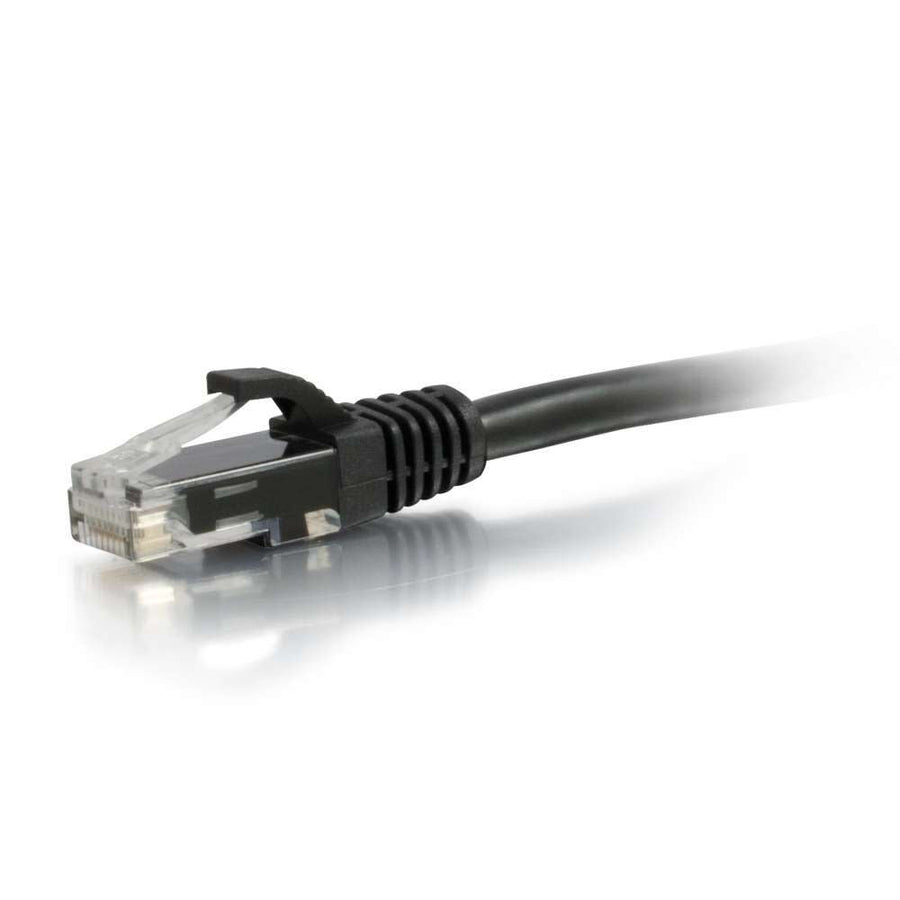

75ft (22.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
75ft (22.9 m) Cat6a Unshielded UTP patch cable, Black, with snagless boots and 26AWG stranded copper conductor
The C2G CG50882 is a 75ft (22.9 m) Cat6a Unshielded UTP Ethernet patch cable designed for high-performance 10GBase-T networking environments. This cable facilitates 10 Gigabit data transmission over a 4-pair copper configuration, supporting connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing a reliable link for switches, routers, hubs, and network adapters. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is built for durability and signal integrity. The PVC jacket and snagless boots protect the RJ-45 male connectors, making it an ideal choice for high-density switch applications where cable management is critical. Each cable features an individual length label for easy identification during installation. This black patch cable is suitable for environments requiring Cat6a performance with improved alien crosstalk protection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.86 lbs (0.9 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508823 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this cable is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission via its 4-pair copper configuration.
What is the wiring scheme for the CG50882?
This patch cable uses the 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
Is this cable suitable for high-density patch panels or switches?
Yes, the snagless hood design is specifically intended to protect connectors in high-density switch applications.
What accessories are compatible with Cat6a installations?
This cable is compatible with various components, including the WP246A 24-Port Rack Mount Patch Panel and WP346AIV Cat6a Keystone Inserts.
Does this cable have a warranty?
The C2G CG50882 is backed by a Lifetime warranty.
