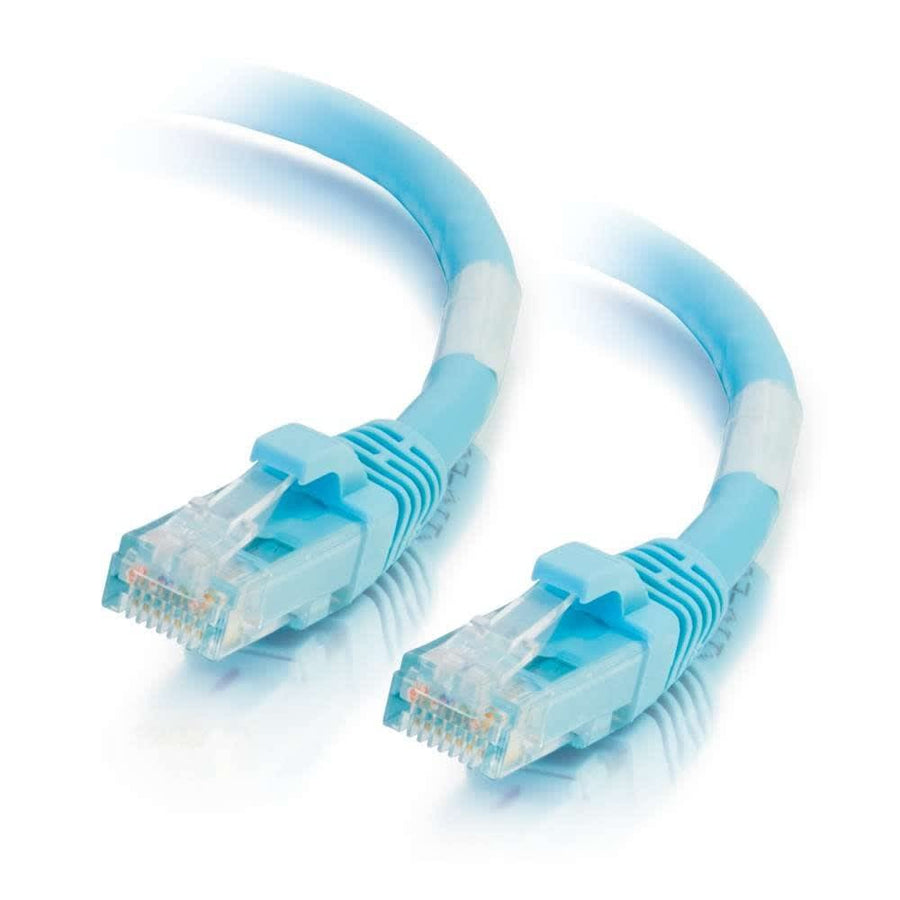

75ft (22.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
75ft Cat6a snagless UTP patch cable in Aqua, supporting 10 Gigabit data transmission via 26AWG bare copper conductors
The C2G CG50874 is a 75ft (22.9 m) Cat6a snagless unshielded UTP Ethernet patch cable designed for high-performance networking environments. This cable supports 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. It enables 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance. The construction features 26AWG (7/0.16) bare copper stranded conductors with HDPE (High-density Polyethylene) insulation. The PVC jacket and PVC connector hoods house a snagless, booted RJ-45 male connector on both ends. This Aqua-colored cable is ideal for high-density switch applications where color-coding is used to organize complex network installations. Each individual cable includes a length label for easy identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.85 lbs (0.8 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508748 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG50874 support 10 Gigabit speeds?
Yes, this Cat6a cable is designed to support 10GBase-T equipment and enables 10 Gigabit data transmission over 4-pair copper cabling.
What is the wiring scheme for this patch cable?
The CG50874 cable follows the 568B wiring scheme.
Is this cable suitable for high-density switch environments?
Yes, the snagless hood design is specifically intended for use in high-density switch applications to protect the connections.
What materials are used in the construction of the CG50874?
The cable features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket and connector hoods.
What certifications does this cable carry?
The CG50874 is CE, REACH, and RoHS compliant.
