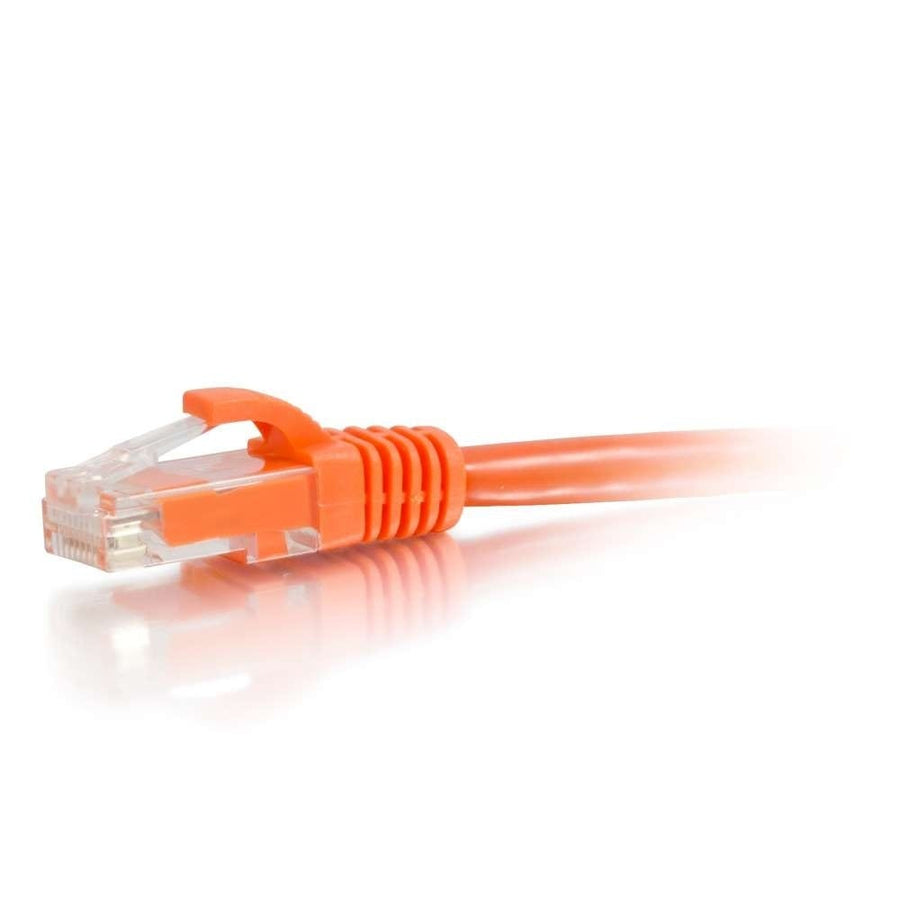

75ft (22.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
75ft Orange Cat6 Unshielded UTP patch cable with snagless boots and RJ-45 Male connectors
The C2G CG31368 is a 75ft (22.9 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is built for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards. It utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and is designed to drastically reduce both impedance and structural return loss (SRL). To maintain the integrity of the twist-spacing throughout the line up to the termination point, each of the individual pairs is bonded together. This Orange patch cable features a 0.24 in (6.2 mm) diameter and utilizes a PVC jacket. Both ends are equipped with RJ-45 Male connectors housed in molded, snagless PVC boots that protect the clips from damage during installation and provide additional strain relief.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 2.07 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313687 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will the C2G CG31368 work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for high-speed Gigabit computer networks and bandwidth-intensive video distribution applications.
What is the maximum length available in this series?
The Cat6 Snagless Patch Cable series is available in various lengths up to 150ft.
What tools are required for installation of this patch cable?
As this is a factory-terminated patch cable with RJ-45 Male connectors, no specialized installation tools are required for connection.
Is this cable suitable for color-coded network environments?
Yes, this SKU is Orange, and the series is available in 10 different colors to assist with network organization.
What compliance certifications does this cable hold?
This cable is compliant with RoHS, REACH, and CE standards and is NDAA 889 compliant.
