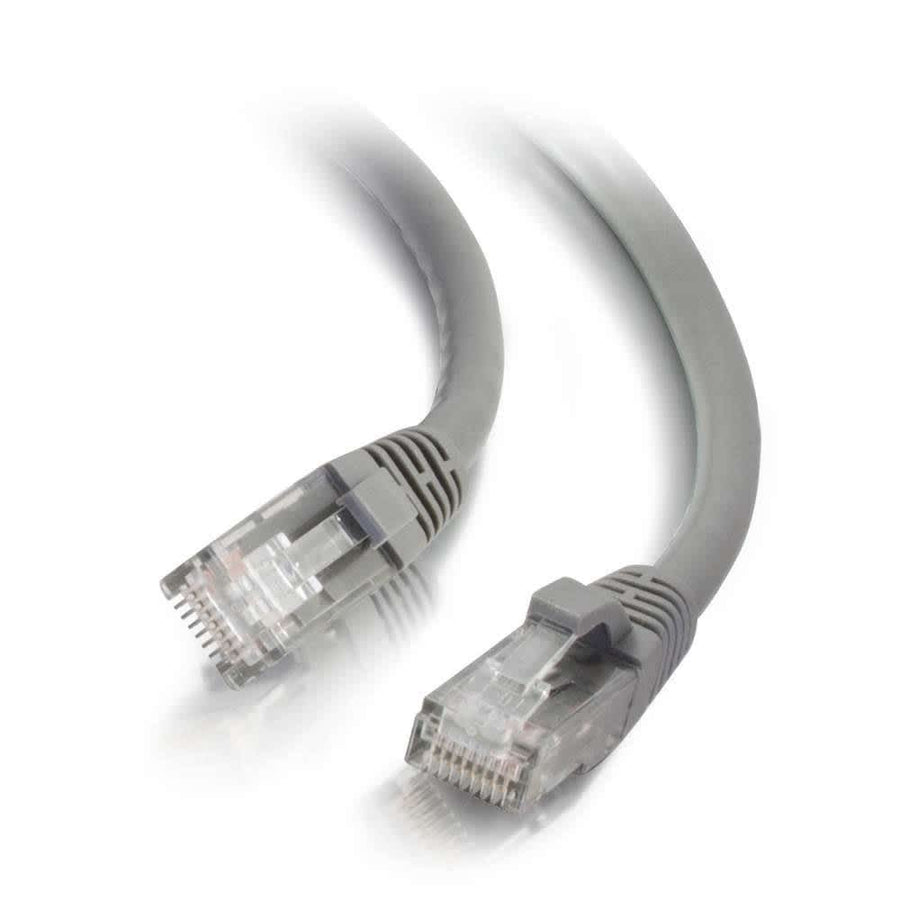

75ft (22.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
75ft (22.9 m) Cat6 Snagless UTP Ethernet Patch Cable in Gray, featuring stranded copper conductors and a snagless boot
The C2G CG31360 is a 75ft (22.9 m) Cat6 Snagless UTP Ethernet Network Patch Cable in Gray designed for high-bandwidth voice, data, or video distribution in Gigabit and fast Ethernet networks. This unshielded twisted pair (UTP) cable meets all TIA/EIA Cat6 standards, which helps to significantly reduce impedance and structural return loss (SRL). Each individual pair is bonded to maintain consistent twist-spacing from the termination point to the end of the line, a design that minimizes Near-End Crosstalk (NEXT) levels. The cable features 24 AWG stranded copper conductors and PVC jacket material. To simplify installation and protect the hardware, the RJ-45 male connectors are equipped with a molded, snagless PVC boot that provides extra strain relief and prevents the clips from catching on other cables during handling. This 0.24 in (6.2 mm) diameter cable is a reliable choice for professional network environments requiring T568B wiring schemes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.97 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313601 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the CG31360 suitable for Gigabit Ethernet networks?
Yes, this Cat6 patch cable is designed for Gigabit and fast Ethernet computer networks requiring high-bandwidth distribution for data, voice, or video.
What is the wiring scheme for the C2G CG31360 cable?
The CG31360 uses the T568B wiring scheme and features unshielded twisted pair (UTP) construction with 24 AWG stranded copper conductors.
What is the difference between the snagless boot and a standard boot?
The snagless boot is a molded PVC cover that protects the RJ-45 connector clips from being damaged or snagged when plugging or unplugging the cable.
What accessories are compatible with this Cat6 cable?
This cable can be used with various components including the Cat6 48-Port Rack Mount Patch Panel (SKU: 48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (SKU: 24845CC6).
Does this cable come with a warranty?
The C2G CG31360 comes with a lifetime warranty from the manufacturer.
