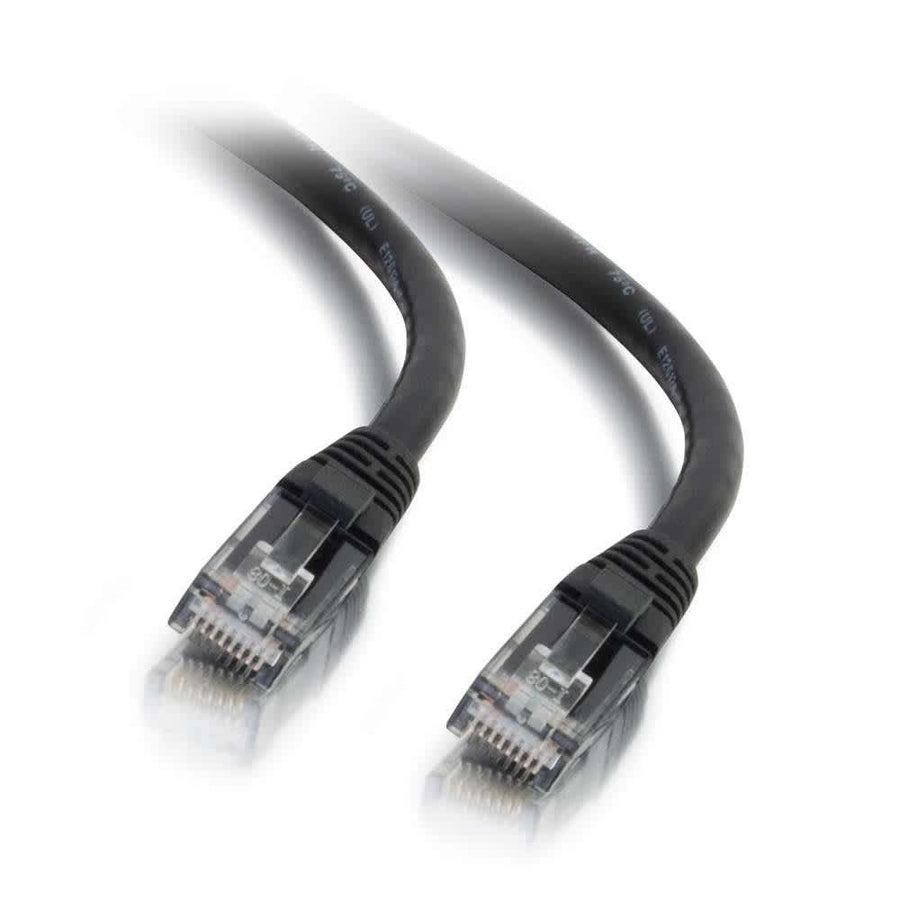

75ft (22.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
75ft Cat6 unshielded UTP Ethernet patch cable with snagless boots for high-bandwidth data and video distribution
The C2G CG31362 is a 75ft (22.9 m) Cat6 snagless patch cable designed for high-bandwidth Ethernet networks requiring reliable voice, data, or video distribution. This unshielded (UTP) cable meets all Cat6 TIA/EIA standards, which helps to reduce impedance and structural return loss (SRL). The construction utilizes high-quality stranded copper conductors with a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire 22.9 m length, ensuring consistent performance up to the termination point. The cable features a black PVC jacket and is equipped with snagless, booted RJ-45 male connectors that protect the clips from damage during installation and provide additional strain relief. This series is available in various colors to facilitate network color-coding and comes in multiple lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 2 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313625 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will the C2G CG31362 work in my Cat6 patch panel?
Yes, this cable is compatible with Cat6 rack mount patch panels, such as the C2G 24-port 24845CC6 or 48-port 48845CC6 models.
Does this cable support high-speed data distribution?
Yes, the Cat6 construction is designed for high-speed Ethernet and Gigabit networks, meeting all TIA/EIA standards for data and video.
What is the wiring standard for this patch cable?
The CG31362 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
Is the clip on this cable protected during installation?
Yes, the snagless, booted design covers the RJ-45 clips to prevent them from breaking when plugging or unplugging the cable.
What is the maximum length available in this series?
While this specific SKU is 75ft (22.9 m), the series offers various lengths up to 150ft.
