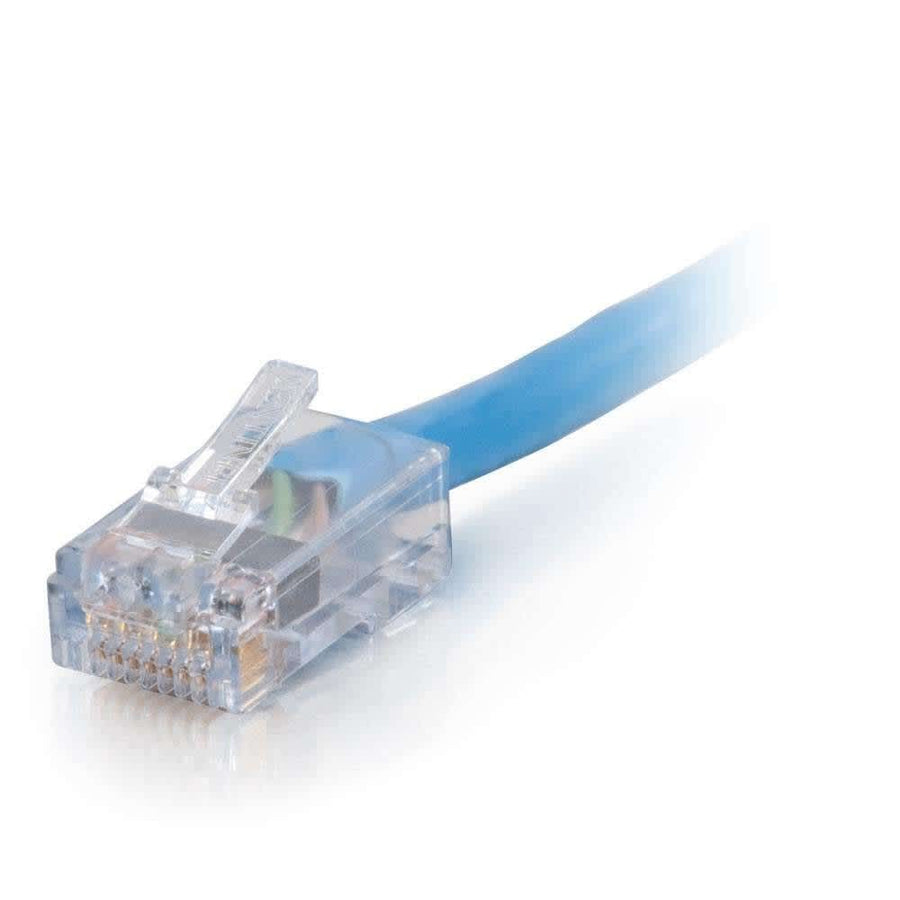

75ft (22.8m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
75ft Blue Cat6 UTP plenum patch cable, CMP/FT6 rated, with 50 micron gold plated RJ45 connectors
The C2G CG15288 is a 75 ft (22.9 m) Cat6 UTP patch cable designed to meet strict building codes for plenum space installations. This cable is suitable for routing through dropped ceilings or under raised floors in commercial environments like hospitals and schools. Featuring a blue PVC jacket, this CMP and FT6 rated cable is engineered to handle bandwidth-intensive voice, data, and video distribution while minimizing Near-End Crosstalk (NEXT) levels. It is constructed with 23AWG stranded copper conductors and utilizes 50 micron gold plated RJ45 male connectors on both ends. This non-booted, unshielded patch cable is tested to 550MHz and complies with TIA/EIA-568-C.2 standards to reduce impedance and structural return loss (SRL). This TAA compliant cable is a reliable choice for high-performance network environments requiring plenum-rated compliance.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.96 lbs (0.9 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152880 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG15288 rated for plenum spaces?
Yes, this cable features a CMP and FT6 rated jacket, making it suitable for installation in plenum spaces above dropped ceilings or under raised floors.
What is the maximum bandwidth for this Cat6 cable?
The CG15288 is tested to 550MHz, supporting bandwidth-intensive voice, data, and video distribution applications.
What materials are used in the construction of this patch cable?
This cable is constructed with 23AWG stranded copper conductors and 50 micron gold plated RJ45 male connectors.
Is this cable TAA compliant for government contracts?
Yes, the CG15288 is TAA compliant and meets NDAA 889 requirements.
What accessories are compatible with this Cat6 cabling?
This cable can be used in conjunction with Cat6 48-port rack mount patch panels like the 48845CC6 or 24845CC6.
