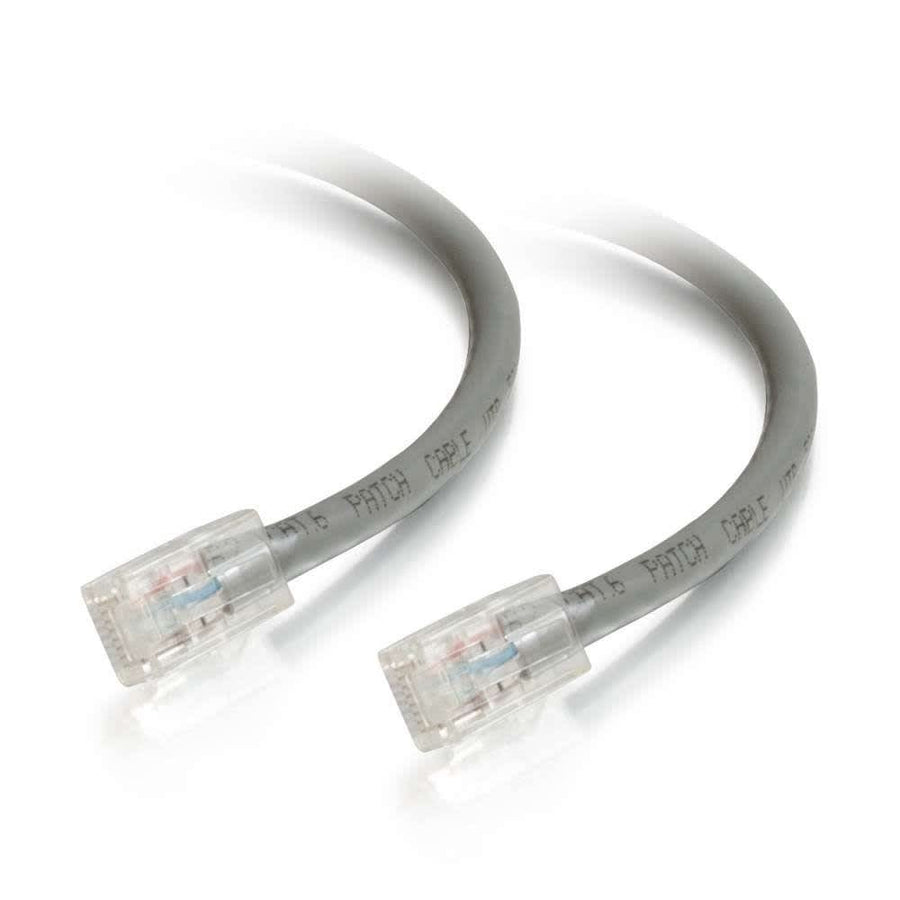

75ft (22.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
75ft Cat6 UTP patch cable with non-booted RJ-45 connectors and gray PVC jacket
The C2G CG04082 is a 75ft (22.9 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for bandwidth-intensive applications including voice, data, and video distribution. This cable is constructed with stranded copper conductors to minimize Near-End Crosstalk (NEXT) and is engineered to meet all Cat6 TIA/EIA standards. By utilizing a design where individual pairs are bonded together, the cable maintains twist-spacing through the entire line up to the termination point, which significantly reduces impedance and structural return loss (SRL). The cable features a 0.24 in (6 mm) diameter and is housed in a gray PVC jacket with a standard non-rated rating. This non-booted cable uses an RJ-45 male to RJ-45 male configuration with a T568B wiring scheme. It is rated for temperatures up to 75°C and is suitable for Gigabit computer networks requiring high performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.93 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040828 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04082?
This Cat6 patch cable uses the T568B wiring scheme on both RJ-45 male connectors.
Is the C2G CG04082 TAA compliant?
No, this specific SKU is not listed as TAA compliant.
What kind of shielding does this Cat6 cable have?
This is an Unshielded Twisted Pair (UTP) cable, meaning it does not have additional external shielding.
What is the maximum temperature rating for this cable?
The cable is rated for operation in temperatures up to 75°C.
What accessories are compatible with this cable series?
This cable is part of a series that works with components like the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and various Cat6 Keystone Inserts.
