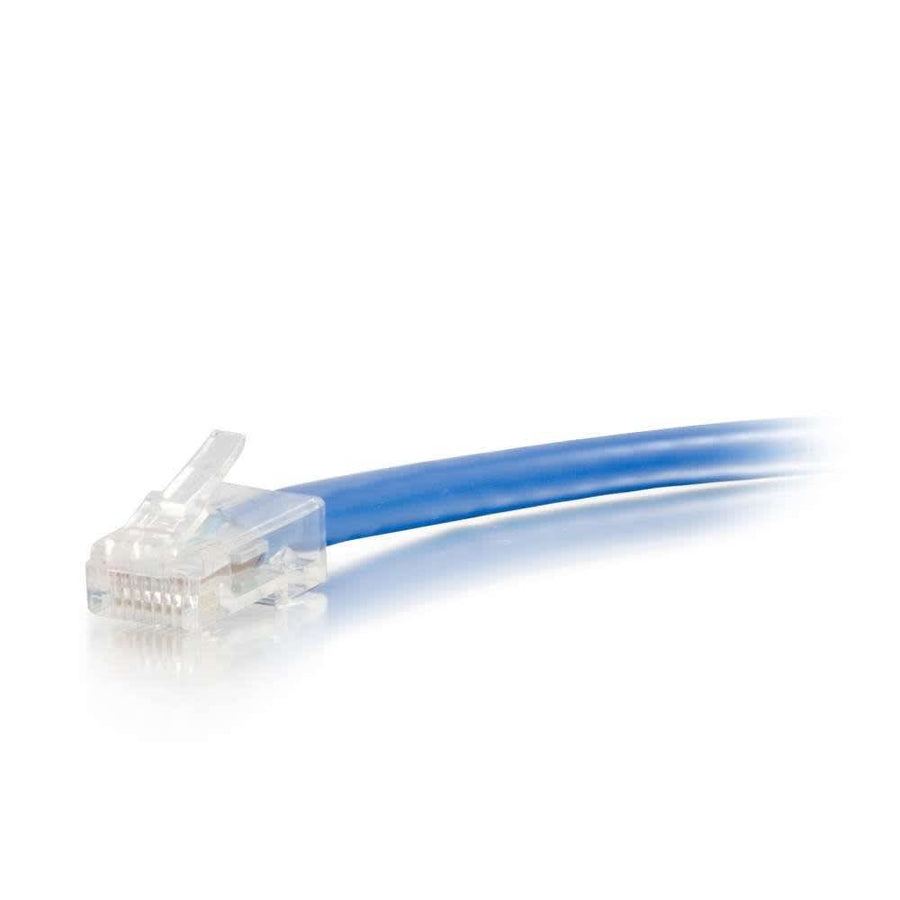

75ft (22.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
75ft Cat6 unshielded UTP patch cable in blue, featuring stranded copper conductors and T568B wiring for high-bandwidth networking
The C2G CG04103 is a 75ft (22.9 m) Cat6 unshielded UTP ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. Built to meet all Cat6 TIA/EIA standards, this cable drastically reduces both impedance and structural return loss (SRL) to ensure reliable high-speed connectivity. The design utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point, which is critical for maintaining signal integrity in Gigabit computer networks. This non-booted cable features RJ-45 male connectors on both ends and follows the T568B wiring scheme. The 0.24 in (6 mm) diameter PVC jacket is rated for a temperature range up to 75°C. This blue patch cable is part of the C2G Cat6 Non-Booted Patch Cable Series, offering a high-performance solution for professional network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.9 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041030 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
The CG04103 uses the T568B wiring scheme and features non-booted RJ-45 male connectors on both ends.
The CG04103 uses the T568B wiring scheme and features non-booted RJ-45 male connectors on both ends.
Is the C2G CG04103 TAA compliant?
No, the CG04103 is not TAA compliant, though it carries CE, REACH, and RoHS certifications.
What kind of conductors are used in this Cat6 cable?
This cable is constructed with stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
Will this cable work for high-bandwidth video or data distribution?
Yes, this Cat6 cable is designed for Gigabit computer networks requiring bandwidth-intensive voice, data, or video distribution.
What accessories are compatible with this series?
This cable is part of a broader ecosystem including the CG29747 USB-C to Ethernet Adapter and various rack mount patch panels like the 48-Port 48845CC6.
