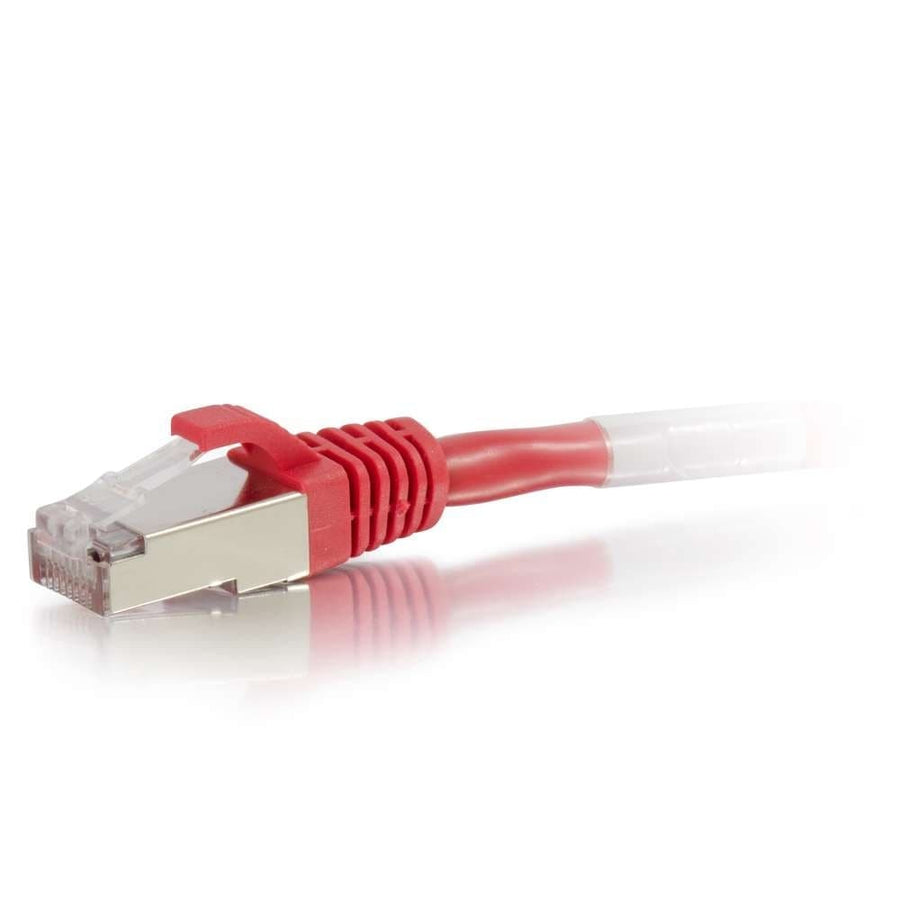

75ft (22.8m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Red
75ft Cat5e shielded STP patch cable in red, featuring 24 AWG stranded copper conductors and snagless boots
The C2G CG28702 is a 75ft (22.9 m) Cat5e shielded STP Ethernet network patch cable designed for use in environments with high EMI/RFI noise. This F/UTP cable utilizes an overall cable foil shield and a drain wire to protect signal integrity against electromagnetic interference. The cable features 24 AWG stranded copper conductors and is terminated with 50 micron gold-plated RJ45 male connectors. For added durability and strain relief, each end is equipped with a PVC snagless boot. This red cable is wired to the TSB 568B (AT+T 258A) standard and uses HDPE (High-density Polyethylene) for insulation. For complete end-to-end protection in noisy environments, this cable should be used alongside Cat5e shielded patch panels and Cat5e shielded keystone jacks. This product is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 2.05 lbs (0.9 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287025 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this cable work in high-interference environments?
Yes, the F/UTP shielding and overall cable foil with a drain wire provide protection against EMI/RFI noise in noisy environments.
What do I need to ensure end-to-end shielding?
For maximum protection, use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What is the wiring standard for the CG28702?
This cable is wired to the TSB 568B (AT+T 258A) standard and features 50 micron gold-plated RJ45 male connectors.
What is the operating temperature range for this cable?
This cable is rated for operating temperatures between -4° - 176°F (-20° - 80°C).
Is this cable NDAA 889 compliant?
Yes, this product is listed as NDAA 889 compliant and carries a lifetime warranty.
