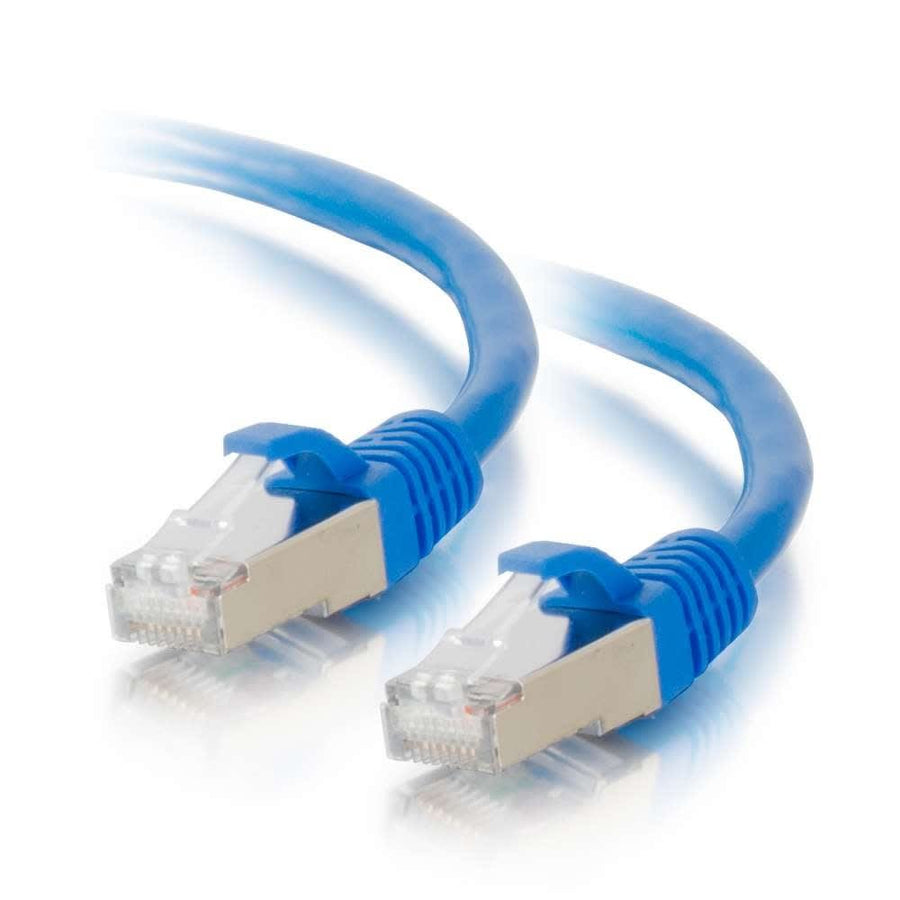

75ft (22.8m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
75ft Cat5e shielded STP Ethernet patch cable in blue, featuring 24 AWG stranded copper conductors for noisy environments
The C2G CG28701 is a 75ft (22.9 m) Cat5e shielded STP Ethernet network patch cable designed for reliable connectivity in environments with high levels of electromagnetic interference (EMI) or radio frequency interference (RFI). This F/UTP cable features an overall cable foil shield and a drain wire to provide protection against noise, ensuring performance that meets or exceeds industry standards for return loss and NEXT. Each cable utilizes 24 AWG stranded copper conductors and is wired to the TSB 568B (AT+T 258A) standard. The blue PVC jacket encloses a 0.24 in (6 mm) diameter cable, terminating in two shielded 50 micron gold-plated RJ-45 male connectors. For added durability and ease of installation, the connectors include a snagless, booted design made of PVC. This cable is suitable for use in temperatures ranging from -4° to 176°F (-20° to 80°C). To achieve maximum protection against interference in a complete end-to-end installation, use this cable in conjunction with C2G Cat5e shielded patch panels and shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 1.93 lbs (0.9 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287018 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Yes, the CG28701 features F/UTP shielding with an overall cable foil shield and a drain wire to provide protection against electromagnetic and radio frequency interference.
Yes, the CG28701 features F/UTP shielding with an overall cable foil shield and a drain wire to provide protection against electromagnetic and radio frequency interference.
What is the wiring standard for the CG28701?
This patch cable is wired to the TSB 568B (AT+T 258A) standard using 24 AWG stranded copper conductors.
What is required for a complete shielded installation?
For maximum EMI/RFI protection, use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks to ensure complete end-to-end shielding.
What is the operating temperature range for this cable?
The cable is rated for operating temperatures between -4° to 176°F (-20° to 80°C).
What is the connector type on this patch cable?
The CG28701 features two shielded 50 micron gold-plated RJ-45 male connectors with a snagless, booted design.
