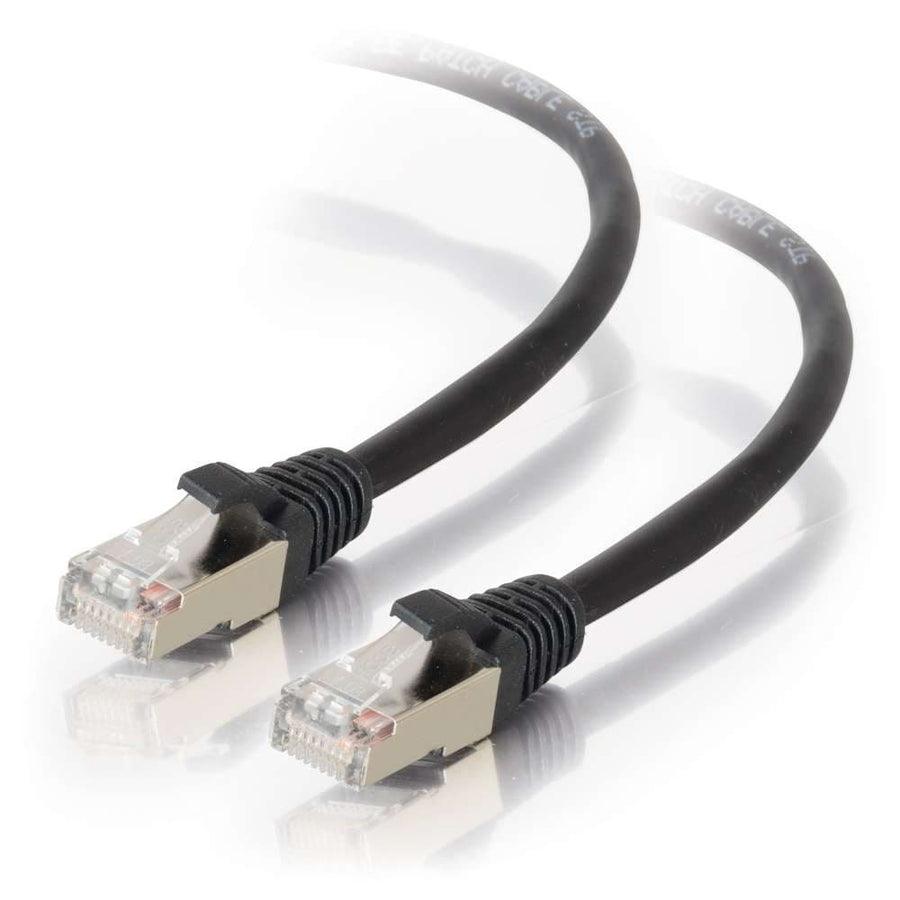

75ft (22.8m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat5e STP patch cable, 75 ft (22.9 m) length, featuring snagless boots and black PVC jacket
The C2G CG28705 is a 75 ft (22.9 m) Cat5e shielded STP Ethernet network patch cable designed to maintain signal integrity in environments with high electromagnetic interference (EMI) or radio frequency interference (RFI). This cable utilizes F/UTP construction, featuring an overall cable foil shield and a drain wire to provide protection against external noise. It is built with 24 AWG stranded copper conductors and TSB 568B wiring standards to meet or exceed industry requirements for NEXT and return loss. The connectors are shielded, 50 micron gold-plated RJ45, and protected by PVC snagless boots that provide additional strain relief and durability during installation. For complete end-to-end shielding in high-interference zones, it is recommended to use this cable alongside C2G Cat5e shielded patch panels and keystone jacks. This black, 0.24 in (6 mm) diameter cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 75 ft (22.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 1.95 lbs (0.9 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287056 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this Cat5e cable work in high-interference environments?
Yes, the CG28705 uses F/UTP shielding with an overall foil shield and drain wire to protect against EMI/RFI noise.
What is required for complete end-to-end shielding in my network?
To achieve maximum EMI/RFI protection, use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What are the connector specifications for the CG28705?
It features shielded, 50 micron gold-plated RJ45 male connectors with snagless PVC boots for added durability.
Is this patch cable suitable for industrial temperature ranges?
The cable is rated for an operating temperature range of -4°F (-20°C) to 176°F (80°C).
What wiring standard does this patch cable follow?
This cable is wired to the TSB 568B (AT+T 258A) standard.
