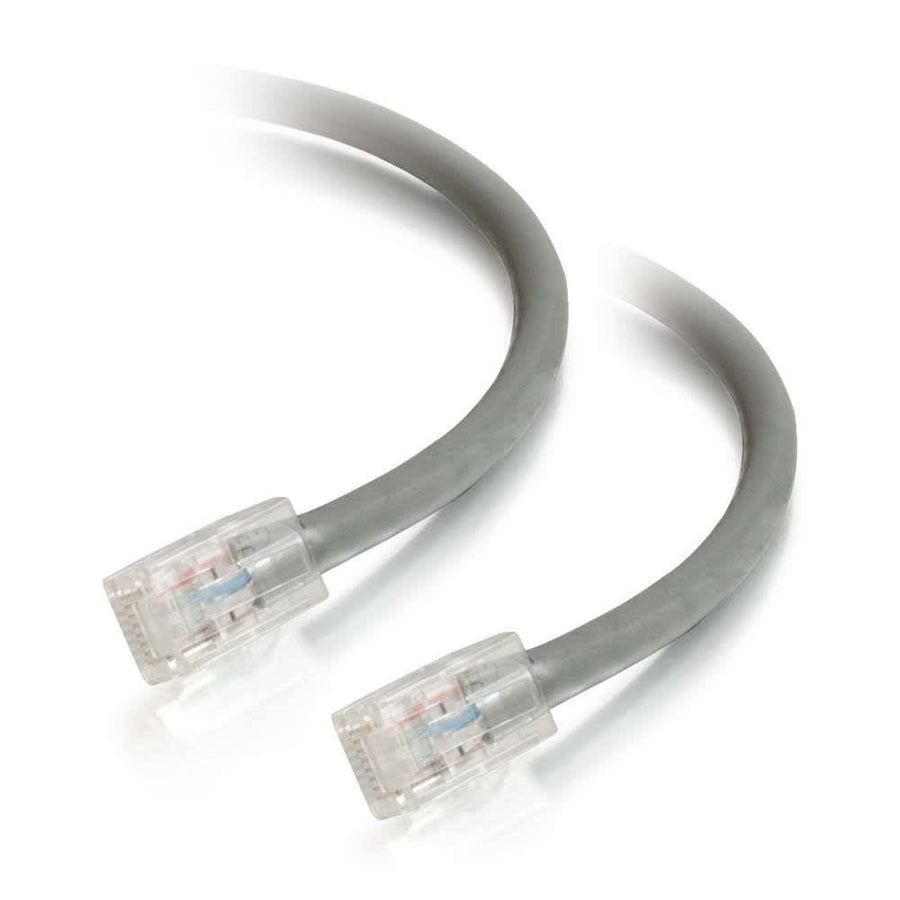

75ft (22.8m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
75ft gray Cat5e UTP patch cable, non-booted, featuring stranded copper conductors for network adapters, hubs, and switches
The C2G CG24398 is a 75 ft (22.9 m) Cat5e unshielded twisted pair (UTP) Ethernet patch cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable is engineered for use with network adapters, hubs, switches, and routers. It features stranded copper conductors and a 24 AWG wire gauge, which helps minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through to the termination point. This construction reduces both impedance and structural return loss (SRL) to meet all TIA/EIA Cat5e standards. The non-booted, gray PVC jacket has a diameter of 0.21 in (5.3 mm) and uses a T568B wiring scheme with RJ-45 male connectors on both ends. This specific gray SKU is part of a wider series available in various lengths up to 150 ft and 10 different colors for easy network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 75 ft (22.9 m) |
| Shield Type | UTP |
| Shipping Weight | 1.69 lbs (0.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
