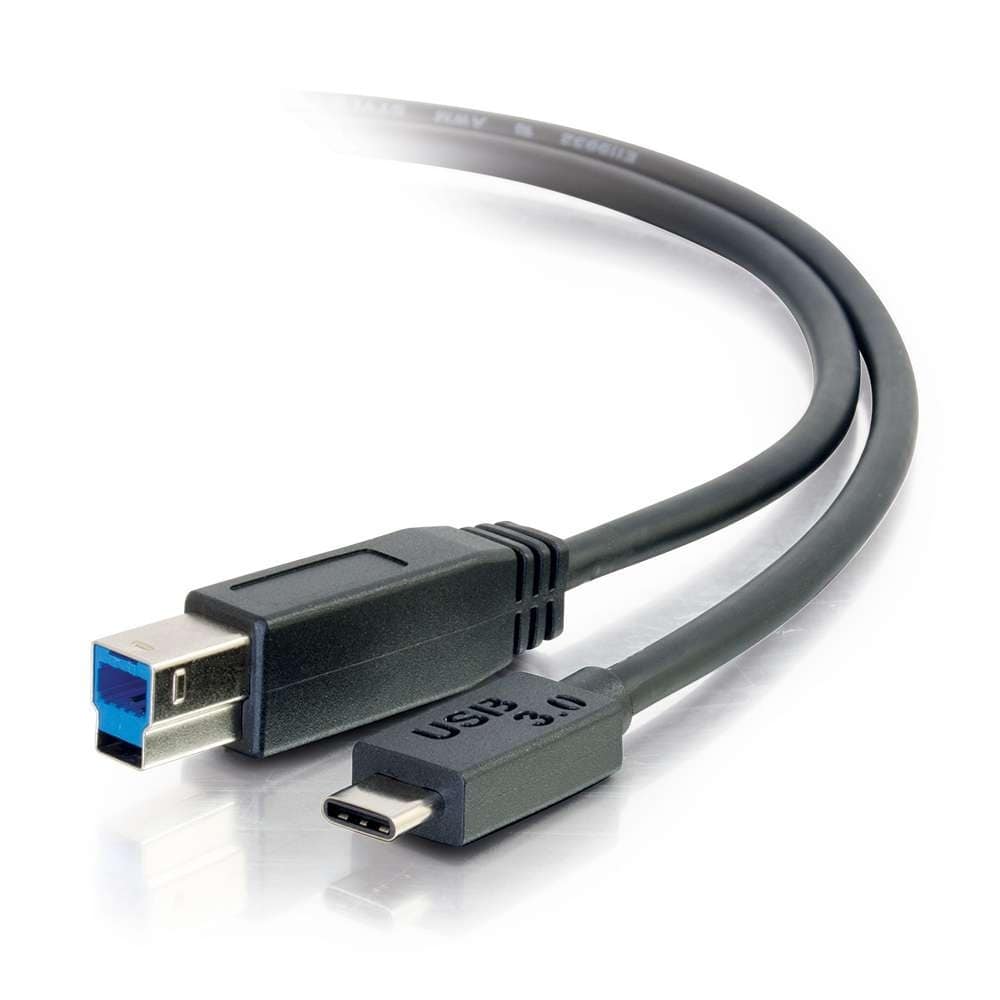

10ft (3m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
10ft USB 3.0 (USB 3.2 Gen 1) USB-C to USB-B Male to Male cable for 5 Gbps data transfer and 1 Amp power sync
The C2G CG28867 is a 10ft (3.1 m) USB 3.0 (USB 3.2 Gen 1) USB-C to USB-B Male to Male cable designed for high-speed connectivity between modern host devices and peripherals. This cable facilitates bidirectional signal transmission at data transfer rates up to 5 Gbps, making it an efficient solution for connecting a USB Type-C enabled computer, tablet, or host device to peripherals featuring a USB-B port, such as external hard drives, hubs, or other specialized hardware. The USB-C connector features a symmetrical design to allow for easy insertion on the first attempt and is rated for up to 10,000 connection cycles. This cable is engineered to support USB 3.0 (USB 3.2 Gen 1) communication and features, and is backward compatible with older USB 3.0 devices. While it supports power sync with 5 volts and 1 Amp for device operation and charging, please note that this specific cable is not designed to support USB 3.2 Gen 2 communication and features.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Diameter | 0.17 in (4.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 80% RH |
| Operating Humidity Min | 20% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 32 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB 3.0 B Male(1) USB 3.0 B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288671 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
CG28866$29.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99

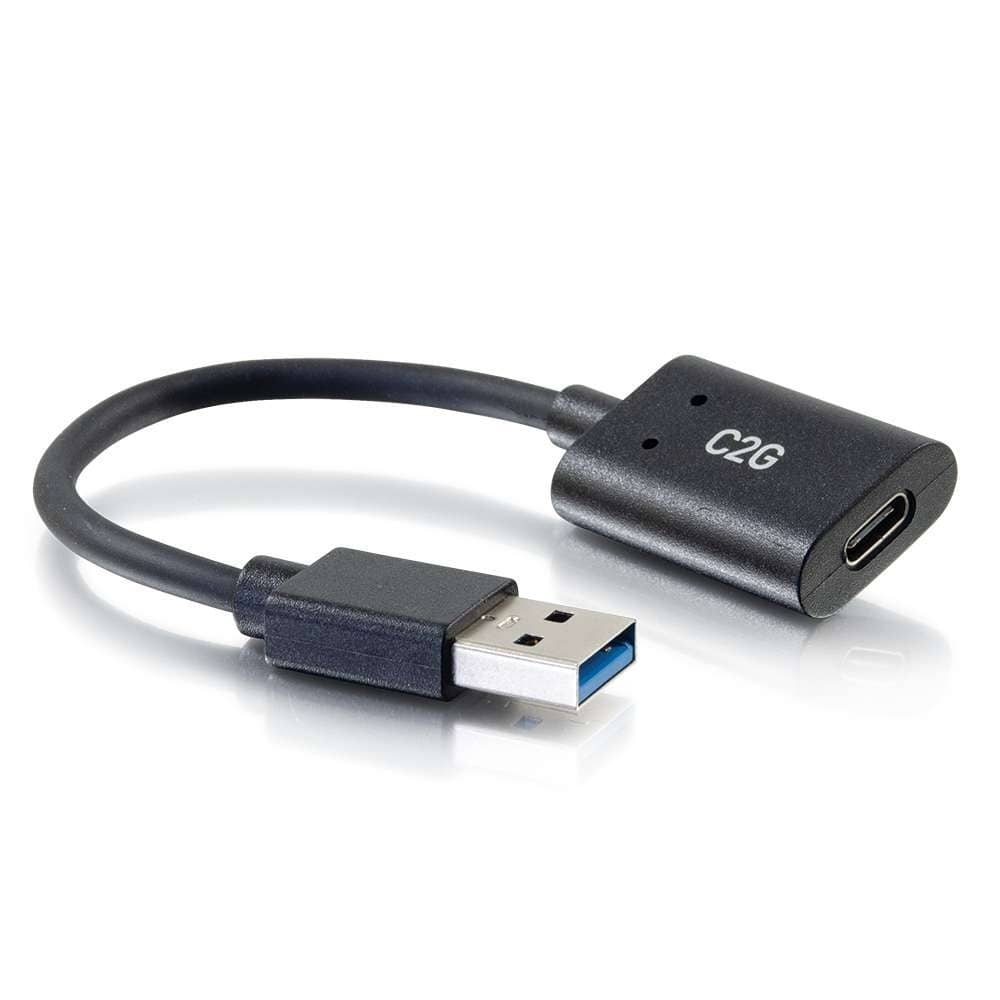

0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99

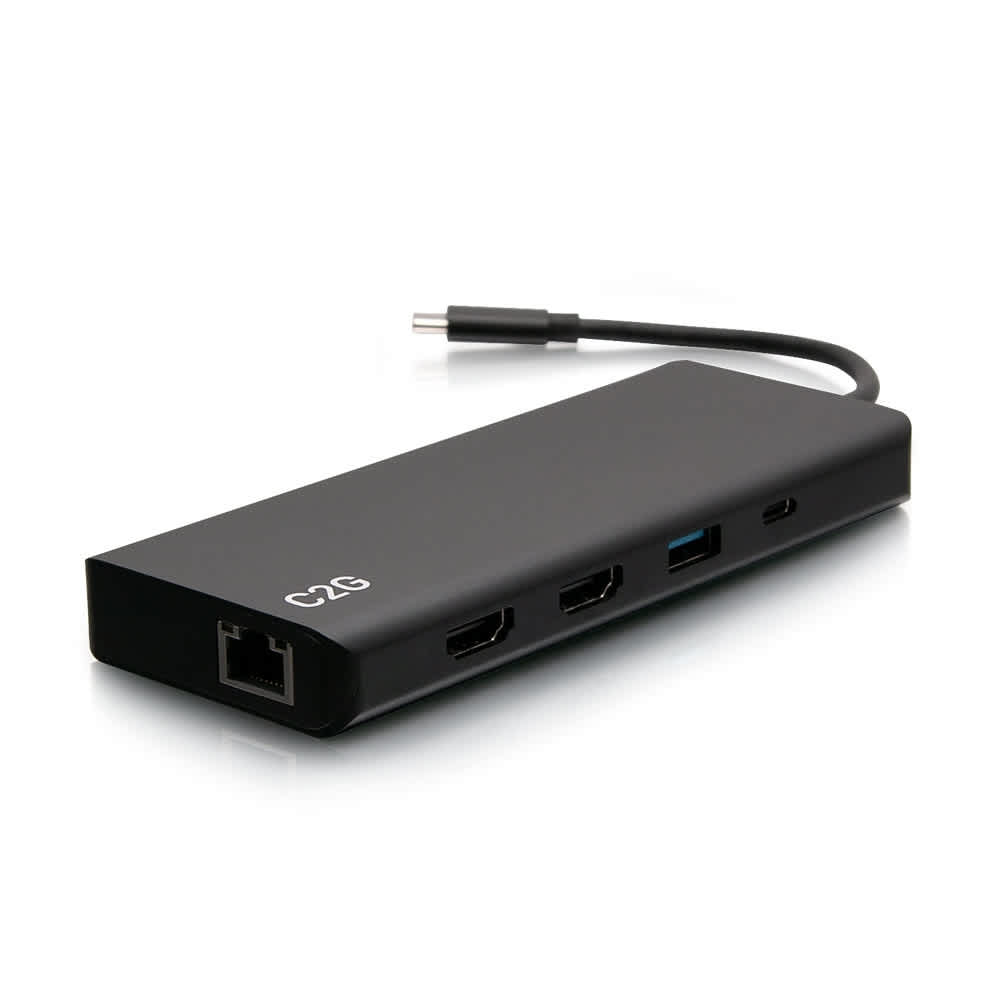

USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99

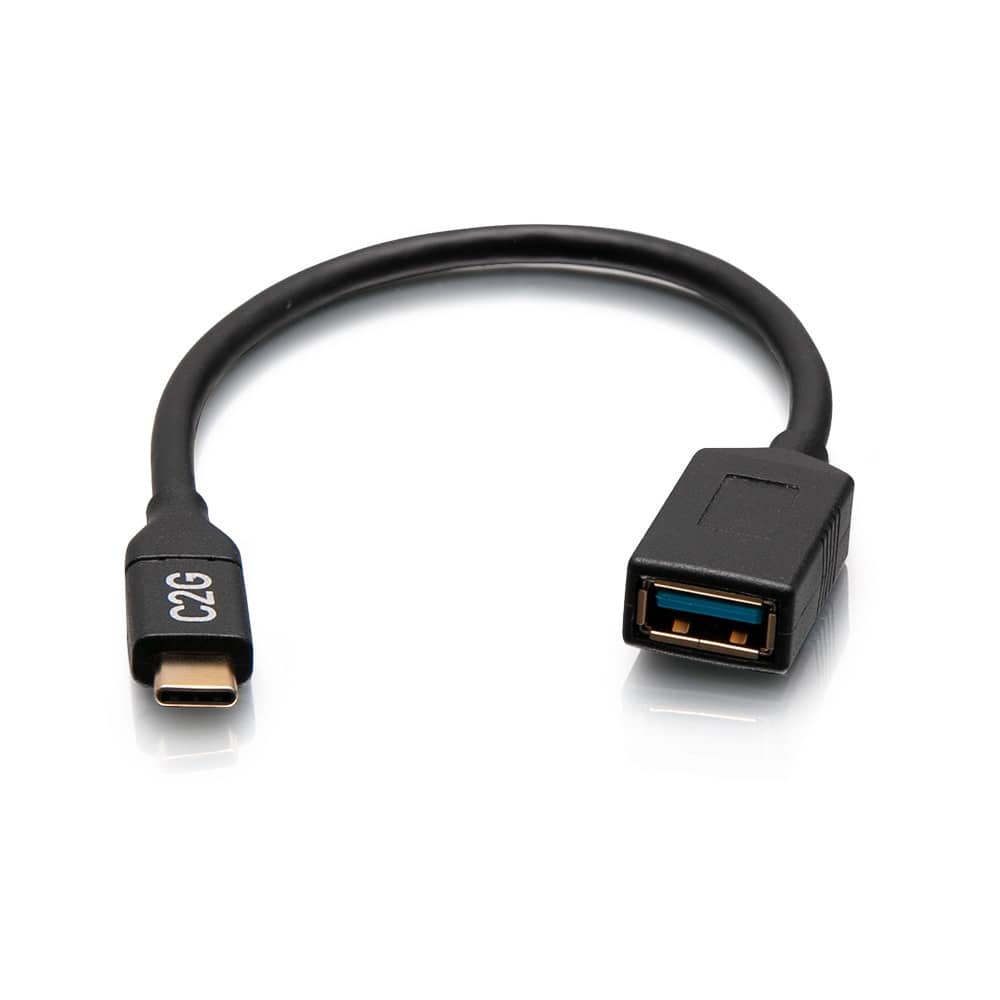

USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will the C2G CG28867 work with my USB 3.2 Gen 2 device?
This cable is designed specifically for USB 3.0 (USB 3.2 Gen 1) communication and does not support USB 3.2 Gen 2 features or communication speeds.
What is the maximum power delivery for the CG28867?
The CG28867 supports power sync with 5 volts and 1 Amp for device operation and charging.
Is there a shorter version of this USB-C to USB-B cable available?
Yes, the CG28866 is a 6ft (1.8m) version of this same USB 3.0 (USB 3.2 Gen 1) cable.
What are the environmental operating limits for this cable?
The cable is rated for operating temperatures between 32° to 122°F (0° to 50°C) and operating humidity between 20% to 80% RH.
Does this cable come with a lifetime warranty?
Yes, this C2G USB 3.0 cable is backed by a lifetime warranty.
