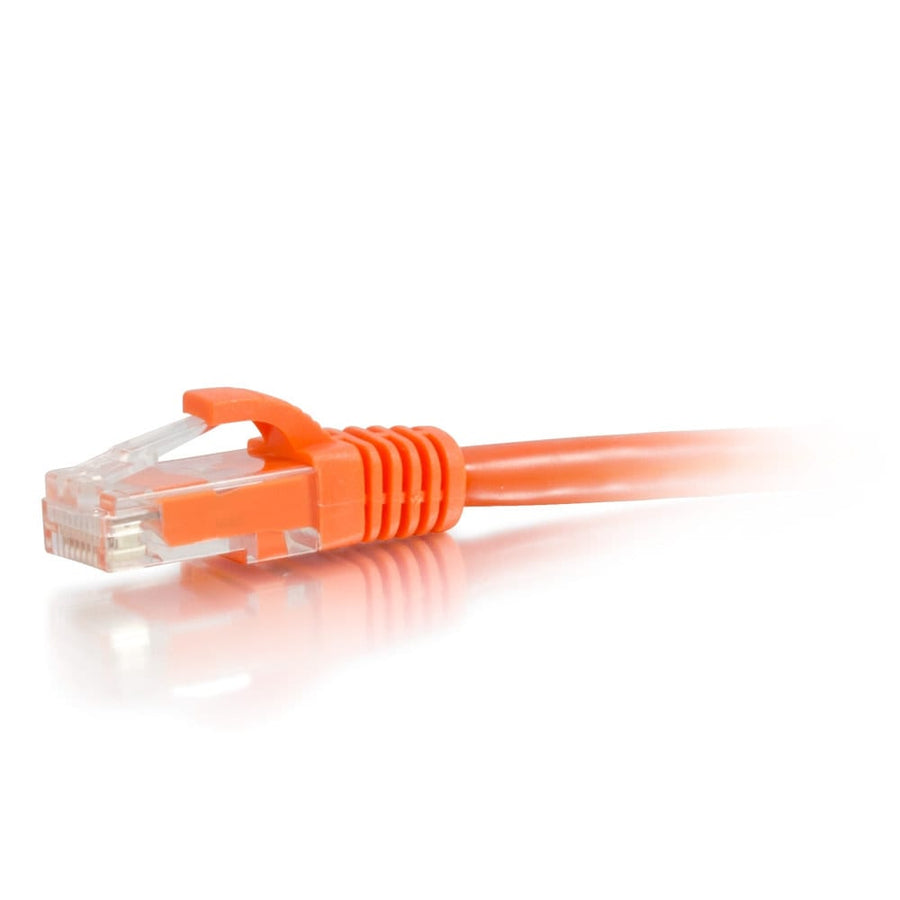

6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
6ft (1.8m) Cat6a Unshielded UTP Ethernet Patch Cable in Orange with snagless boots
The C2G CG50841 is a 6ft (1.8m) Cat6a Unshielded UTP Ethernet Network Patch Cable finished in orange. This cable is designed for high-density environments and is ideal for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It enables 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. This design provides improved alien crosstalk performance. The snagless, booted connector design protects the RJ-45 terminations, making it particularly suitable for high-density switch applications. Each individual cable includes a length label for easy identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508410 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this cable enables 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters and is tested to ANSI/TIA 568 C.2 Cat6a channel requirements.
Is this patch cable suitable for high-density switches?
Yes, the snagless connector boots are specifically designed to protect terminations in high-density switch applications.
What is the wiring scheme for the CG50841?
This Cat6a patch cable follows the 568B wiring scheme.
What is the temperature rating for this orange patch cable?
This cable is rated for temperatures up to 75°C.
What accessories are compatible with this Cat6a cable?
This cable is compatible with various accessories including the WP346AOR Orange Cat6a Quick Connect Keystone Insert and the AC106A6 6 Port Cat6a Network Interface Module.
