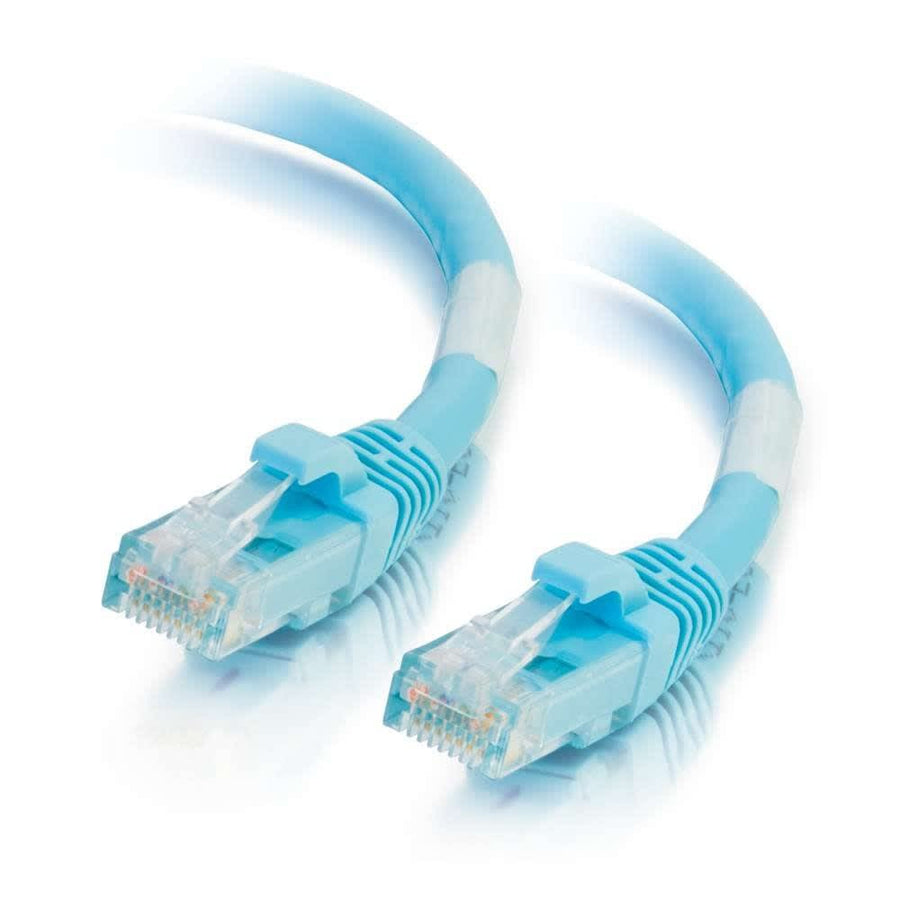

6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
6ft Cat6a Snagless UTP Ethernet patch cable in Aqua, supporting 10 Gigabit data transmission and ANSI/TIA 568 C.2 compliance
The C2G CG00762 is a 6ft (1.8m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in Aqua, engineered to support 10GBase-T ports and high-speed networking equipment. This patch cable is designed for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels, enabling 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien cross talk performance compared to current Cat6 cabling systems. This SKU features a 26AWG stranded copper conductor with HDPE insulation and a PVC jacket. The snagless, booted RJ-45 male connectors are specifically designed to protect the release tab, making them ideal for high-density switch applications where space is limited. For easy identification during installation, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007623 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG00762 work with my 10GbE switch?
Yes, this Cat6a patch cable is designed for use with 10GBase-T ports, including hubs, switches, and routers, supporting 10 Gigabit transmission.
Can I use this cable with Cat6a patch panels?
Yes, this cable is compatible with Cat6a hardware like the WP246A 24-Port Rack Mount Patch Panel and various Keystone inserts.
What is the difference between this and a standard Cat6 cable?
Unlike standard Cat6, this Cat6a cable is tested to ANSI/TIA 568 C.2 channel requirements to provide better alien cross talk performance for 10 Gigabit applications.
What is the wiring standard for this patch cable?
The CG00762 utilizes the 568B wiring scheme for its RJ-45 connectors.
What tools are required for installation?
No specialized tools are required for the cable itself, but the snagless boot design assists with installation in high-density environments.
