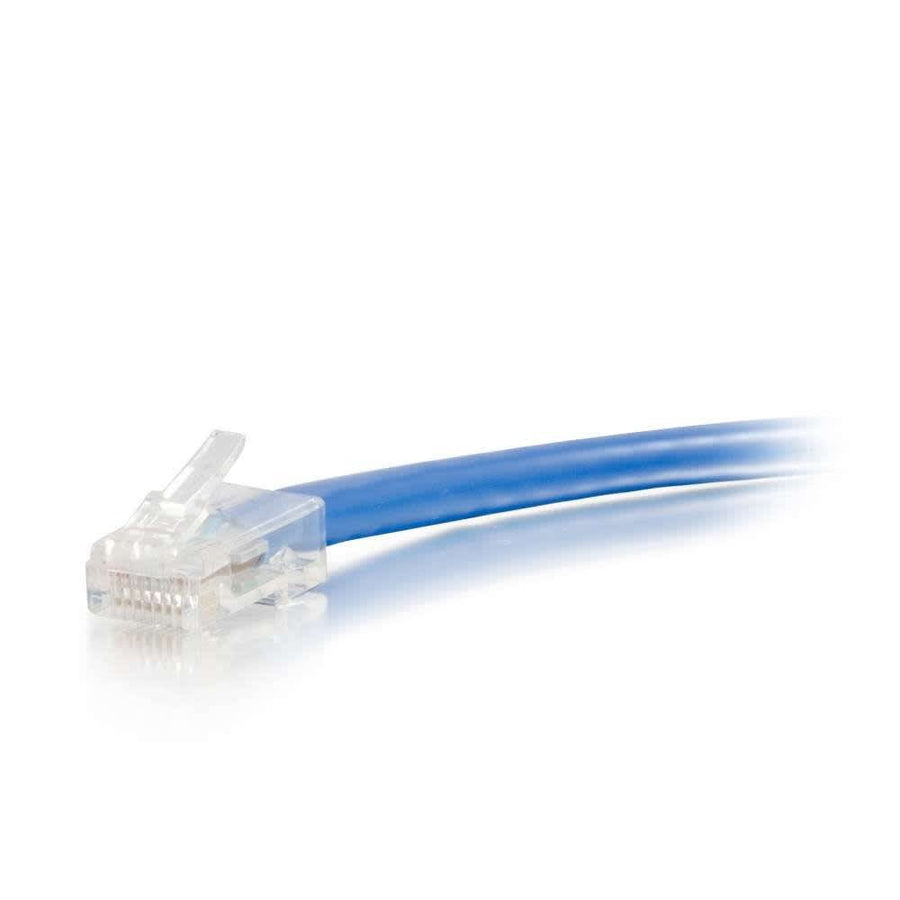

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
6ft blue Cat6 UTP patch cable, 24 AWG stranded copper conductors, T568B wiring scheme
The C2G CG04090 is a 6ft (1.8m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This blue cable utilizes stranded copper conductors with a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the 6ft length, helping to reduce impedance and structural return loss (SRL). Built to meet all Cat6 TIA/EIA standards, this cable features RJ-45 male connectors on both ends and follows the T568B wiring scheme. It is constructed with a PVC jacket rated for standard, non-rated environments and is rated for temperatures up to 75°C. The non-booted design provides a streamlined profile for high-density connections in patch panels or switches.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040903 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04090?
This 6ft Cat6 cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this Cat6 cable suitable for high-speed data applications?
Yes, it is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards for bandwidth-intensive applications.
What is the conductor material and gauge used in this cable?
The CG04090 features stranded copper conductors with a 24 AWG wire gauge.
What is the temperature rating for this patch cable?
This cable is rated for operation in temperatures up to 75°C.
What other network components are compatible with this Cat6 cable?
It is compatible with various hardware, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the 8 Port Cat6 Network Interface Module (AC1068).
