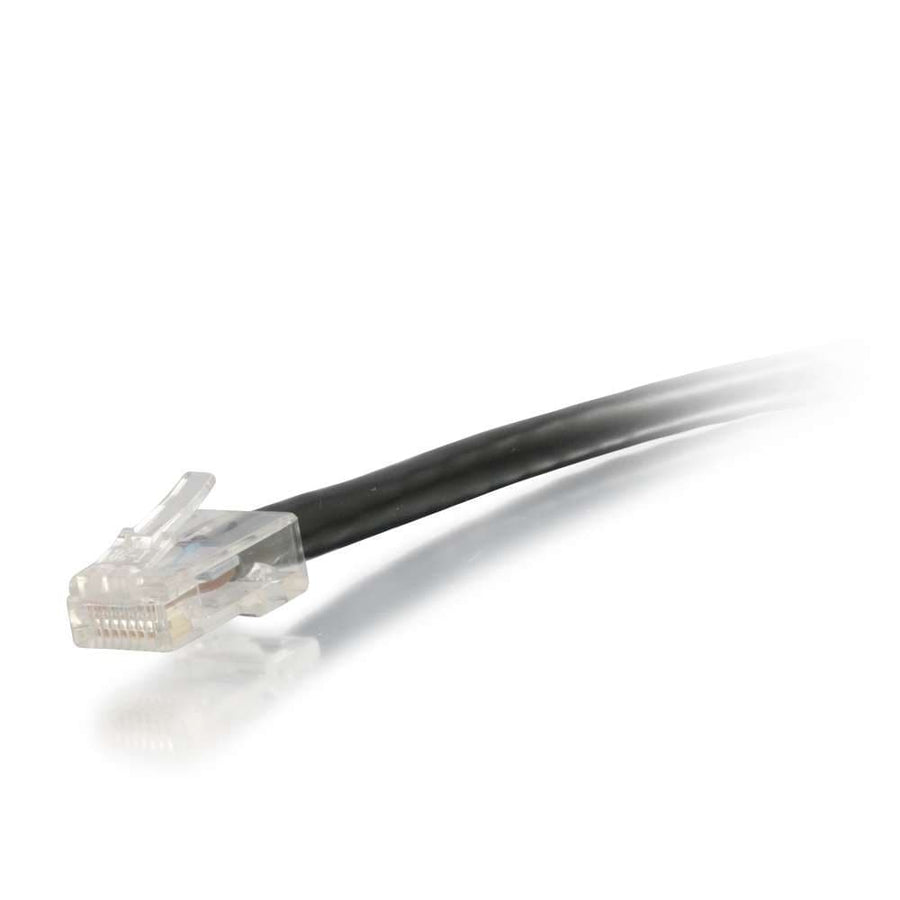

6ft (1.8m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
6ft Cat6 UTP patch cable with black PVC jacket and non-booted RJ-45 connectors for high-bandwidth data distribution
The C2G CG04111 is a 6ft (1.8m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is engineered to meet all Cat6 TIA/EIA standards, providing a reliable solution for fast Ethernet and Gigabit computer networks. It is constructed from high-quality stranded copper conductors that help minimize Near-End Crosstalk (NEXT) levels. The design includes bonded individual pairs to maintain consistent twist-spacing throughout the line up to the termination point, which significantly reduces both impedance and structural return loss (SRL). This specific SKU features a non-booted connector type with a black PVC jacket and a 0.24 in (6 mm) cable diameter. It utilizes a T568B wiring scheme and is rated for temperatures up to 75°C. The cable is protected by a standard, non-rated jacket material.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 6 ft (1.8 m) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041115 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG04111 compatible with standard Cat6 patch panels?
Yes, this cable is compatible with various Cat6 hardware, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
What wiring scheme does this patch cable use?
The C2G CG04111 is wired using the T568B scheme, which is the standard for most modern Ethernet installations.
What is the difference between the booted and non-booted versions of these cables?
This specific SKU, CG04111, is a non-booted connector type, meaning it lacks the extra rubber strain relief sleeve found on booted versions.
Does this cable support Gigabit Ethernet applications?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks, providing the bandwidth required for data, voice, and video distribution.
What is the maximum temperature rating for this cable?
This patch cable has a maximum temperature rating of 75°C.
