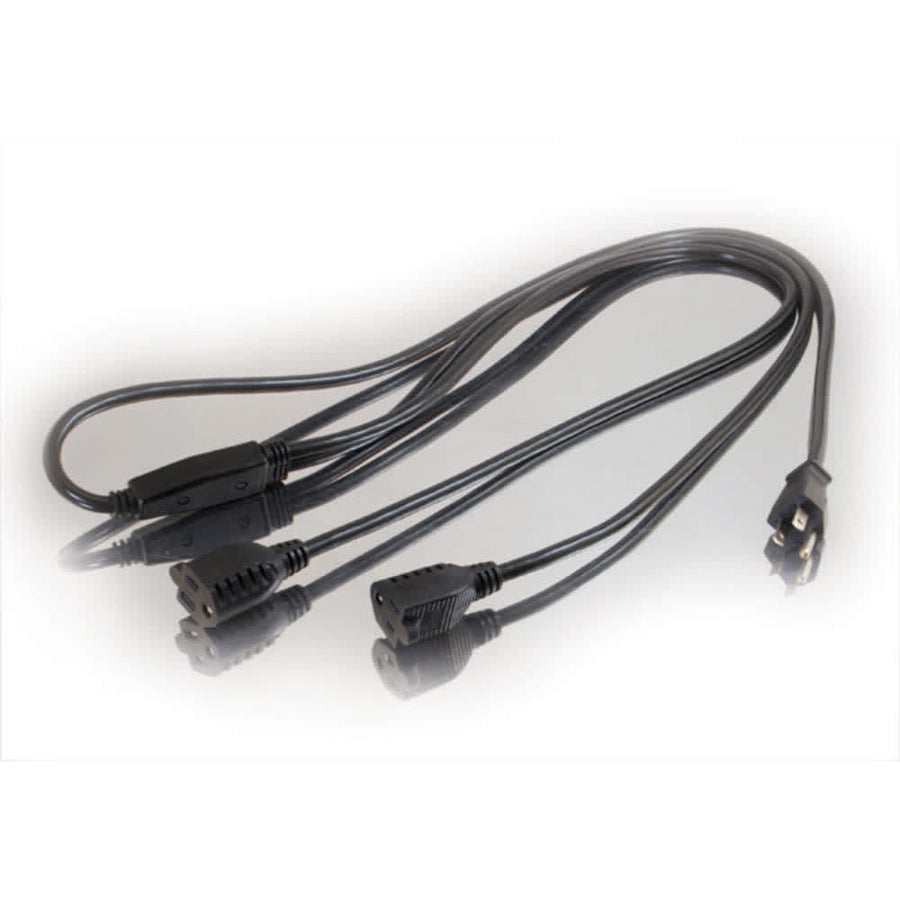

6ft (1.8m) 16 AWG 1-to-2 Power Cord Splitter (1 NEMA 5-15P to 2 NEMA 5-15R)
6ft 16 AWG power splitter that converts one NEMA 5-15P male plug into two NEMA 5-15R female outlets
The CG29807 is a 6ft (1.8 m) 16 AWG 1-to-2 power cord splitter designed to optimize power distribution in tight spaces. This heavy-duty power cable features a single NEMA 5-15P male plug that splits into two NEMA 5-15R female shrouds, allowing an installer to power two electronic devices from a single wall outlet. It is an effective solution for managing power in compact workplaces, home offices, or behind equipment racks where surge protectors or UPS units have limited available outlets. By converting one socket into two, it prevents bulky AC transformers from blocking adjacent outlets. This SJT-rated cord is built with a fully molded design for durability and is compatible with computers, monitors, scanners, printers, and power transformers. The cable uses standard conductor colors: black for hot, white for neutral, and green for ground. It is TAA compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 10 Amp |
| Cable Length | 6 ft (1.8 m) |
| Shipping Weight | 0.96 lbs (0.4 kg) |
| Voltage | 125 V |
| Wire Gauge | 16 |
| Cable Type | Power Cable |
| Color | Black |
| Connector 1 | (1) NEMA 5-15 Male(1) NEMA 5-15 Male |
All other specifications 7
| Connector 2 | (2) NEMA 5-15 Female(2) NEMA 5-15 Female |
| Jacket Rating | SJT Rated |
| Product Type | Power CordSplitter |
| TAA Compliant | Yes |
| UPC | 757120298076 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | Lifetime |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
On-Q 6 Outlet Enclosure Surge Protector with One USB-A and One USB-C
AC1062$34.99
6-Outlet Power Strip with Surge Suppressor (3) 1ft Outlet Saver Power Extension Cords
CG39995$43.99
P6 Plug-In Outlet Center Unit
P6$37.44
6-Outlet Power Strip with Surge Suppressor
CG29300$27.99
WSPC220CBK10 Desktop Power Center in Black
WSPC220CBK10$134.22
M5BZ Plug-In Outlet Center Unit in Bronze
M5BZ$186.52
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
M6BZ Plug-In Outlet Center Unit in Bronze
M6BZ$146.65
Questions about this part
Will the CG29807 work with my NEMA 5-15 devices?
Yes, it is designed for devices using a 3-pin male to female shroud NEMA 5-15 power connector, such as monitors and printers.
What is the maximum amperage for this splitter?
The CG29807 is rated for a maximum of 10 Amps at 125V.
Is this power splitter TAA compliant?
Yes, the CG29807 is TAA compliant, making it suitable for many government and enterprise installations.
How does this splitter help with cable management?
It helps by splitting one outlet into two, which prevents bulky AC transformers from blocking adjacent sockets on a surge strip or UPS.
