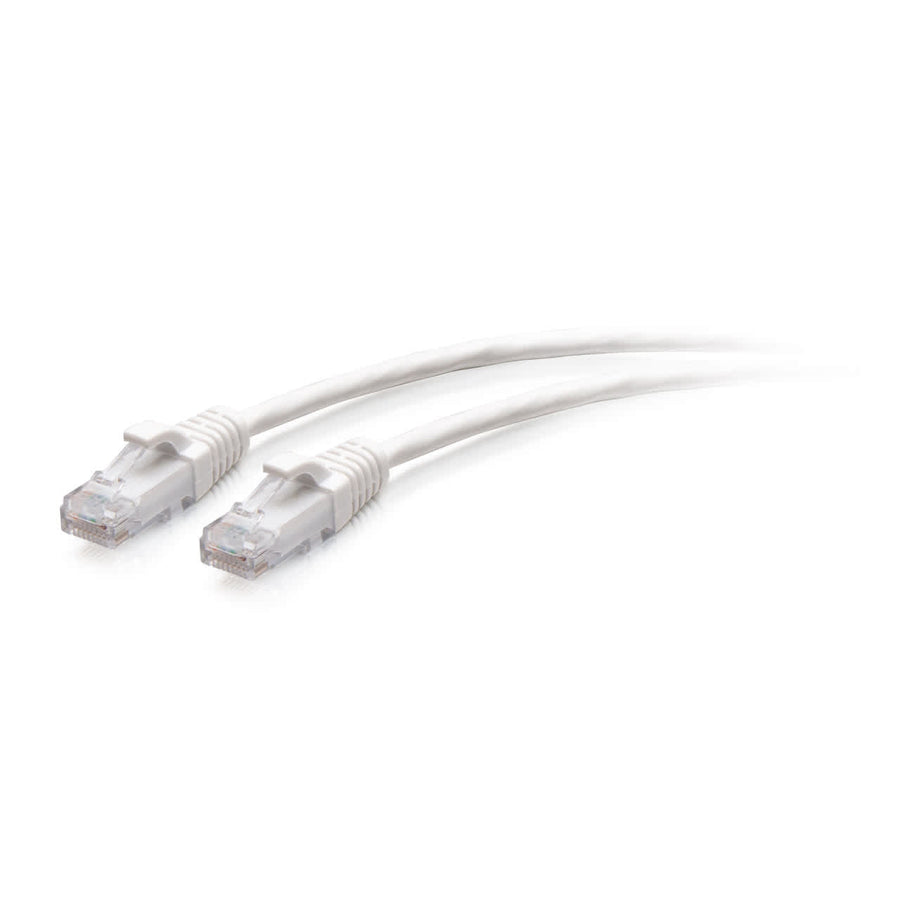

5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - White
White Cat6a slim patch cable, 5 ft length, 28AWG unshielded UTP construction for high-density network environments
The C2G30183 is a 5 ft (1.5 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in white, engineered specifically for high-density cabling environments. This cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm) ± 0.15 mm (0.01 in). This slim profile facilitates better airflow in crowded racks and provides the flexibility required for tight installations in datacenters or large conference rooms. It supports data transfer rates of 10 Gbps and is suitable for applications leveraging HDBaseT technology. Each end features an RJ-45 male connector with gold-plated contacts and a snagless PVC boot to provide strain relief and prevent accidental disconnections during installation. This Cat6a solution meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, making it a reliable choice for Power over Ethernet (PoE) and VoIP deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301837 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this C2G30183 cable work for high-density rack installations?
Yes, the 28AWG slim construction offers a 0.19 in (4.8 mm) diameter, which increases airflow and provides the flexibility needed in crowded datacenter or conference room environments.
What is the maximum data speed supported by this Cat6a cable?
This C2G30183 patch cable supports data transfer rates of up to 10 Gbps, meeting the requirements for high-speed networking and HDBaseT applications.
Does this cable support Power over Ethernet (PoE)?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
What type of connectors are on this patch cable?
The cable features RJ-45 male connectors with gold-plated contacts and a snagless, booted PVC hood to prevent snags during installation.
Which compliance standards does this cable meet?
This cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements and is RoHS and REACH compliant.
