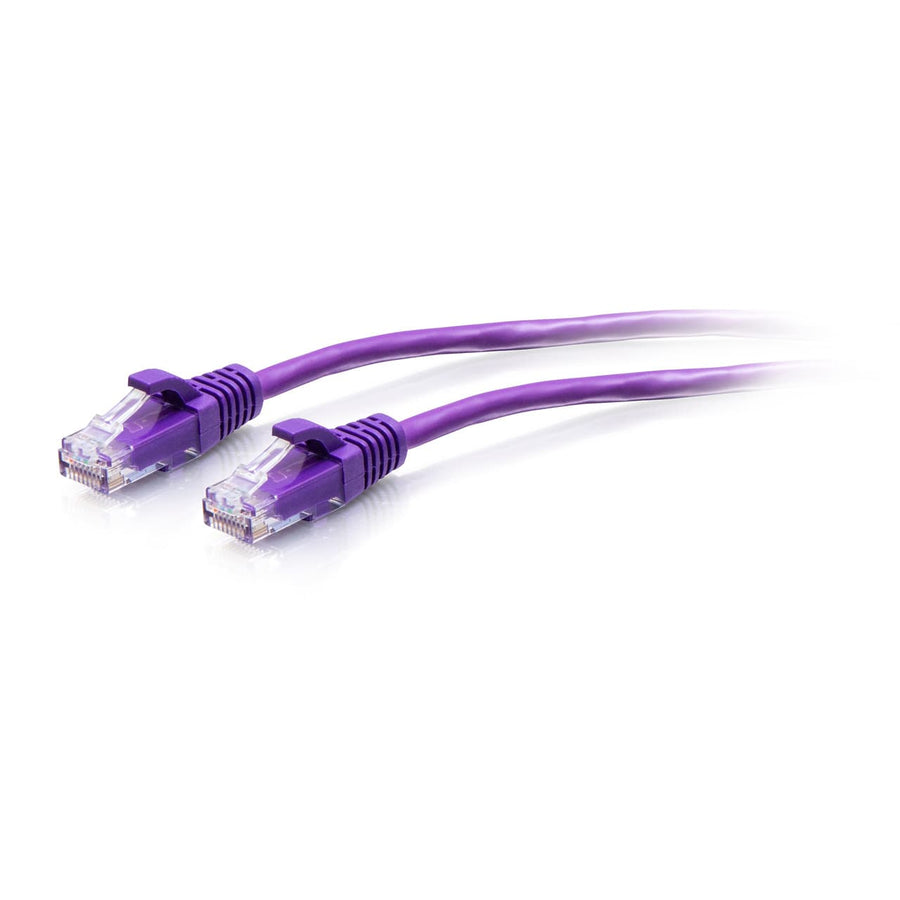

5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Purple
5ft Cat6a slim UTP patch cable in purple with 28AWG conductors for high-density networking and improved airflow
The C2G30190 is a 5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in purple. Designed for high-density cabling environments such as datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow in tight spaces and allows for greater flexibility during installation compared to standard Cat6 cables. Each cable features RJ-45 male connectors with gold-plated contacts and a snagless, booted PVC hood to provide strain relief and prevent snags during deployment. Capable of supporting data transfer rates up to 10 GBPS, this Cat6a cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. It is an effective solution for Power over Ethernet (PoE) and VoIP applications requiring high bandwidth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.21 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301905 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
What is the maximum data transfer rate for the C2G30190?
This Cat6a cable supports data transfer rates up to 10 GBPS, making it suitable for high-bandwidth applications like HDBaseT.
What is the cable diameter of this slim patch cable?
The cable features a 0.19 in (4.8 mm) diameter, which provides a smaller surface area and increased airflow compared to standard cables.
Will this cable work for PoE or VoIP installations?
Yes, the Cat6a technology and 28AWG construction make this an effective solution for Power over Ethernet (PoE) and VoIP environments.
Does this cable include snagless boots?
Yes, the C2G30190 features a molded, snagless boot design to prevent unwanted snags and provide extra strain relief during installation.
What certifications does this cable carry?
The cable is CE certified and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
