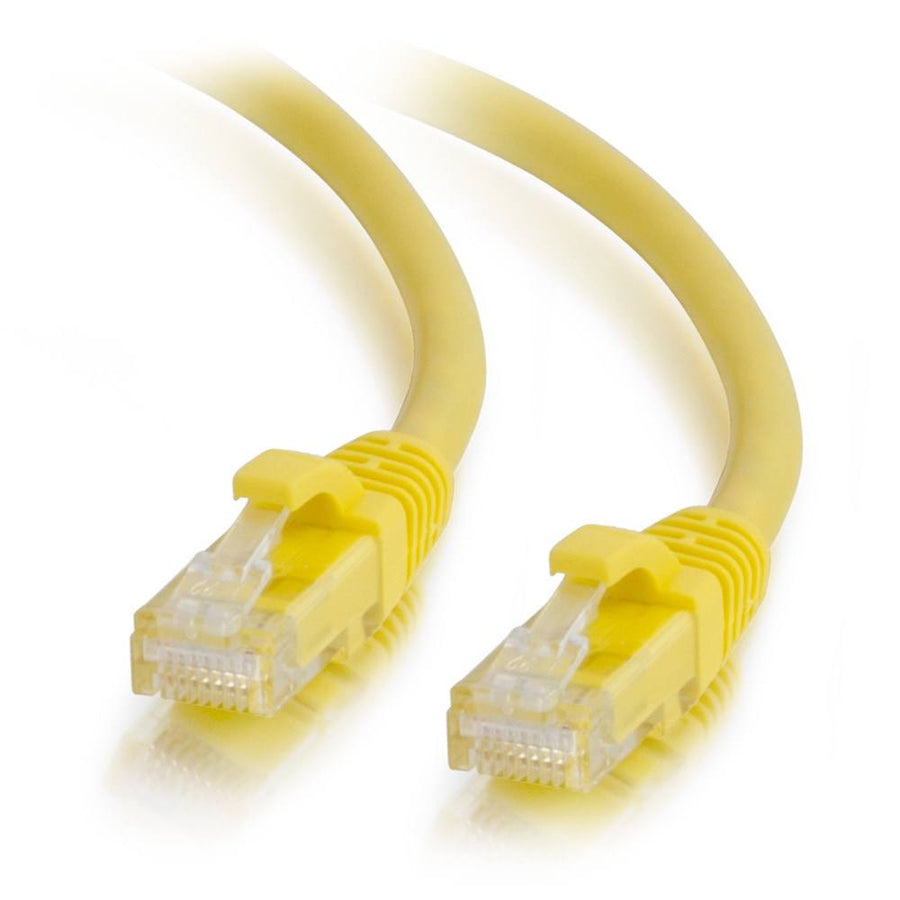

5ft (1.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat6a UTP patch cable, 5 ft (1.5 m) length, featuring snagless boots for high-density switch applications
The C2G CG50745 is a 5 ft (1.5 m) Cat6a Unshielded UTP Ethernet network patch cable designed to facilitate 10 Gigabit data transmission. This cable is engineered for use with 10GBase-T ports and hardware, including network adapters, switches, routers, hubs, and patch panels. It supports connections up to 100 meters via a 4-pair copper configuration. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless hood design is specifically optimized for high-density switch applications, protecting the RJ-45 connection from accidental damage during installation or maintenance. This yellow cable can be used to easily color-code network installations for efficient identification. It features a PVC jacket and PVC connector hoods, with a 0.24 in (6 mm) cable diameter. Each cable is marked with an individual length label for easy identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507451 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG50745 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4 pair copper cable.
Is this cable suitable for high-density switches?
Yes, the snagless boot design is specifically intended for use in high-density switch applications to protect the connectors.
What is the wiring scheme for this C2G patch cable?
This CG50745 cable uses the 568B wiring scheme for its RJ-45 male to RJ-45 male connections.
What compatible accessories are available for Cat6a installations?
You can use this cable with the WP346AYE Yellow Cat6a Quick Connect RJ45 Keystone Insert or the WP246A Cat6a 24-Port Rack Mount Patch Panel.
What certifications does this cable hold?
This cable is compliant with REACH, RoHS, and TSCA standards and is rated for NDAA 889.
