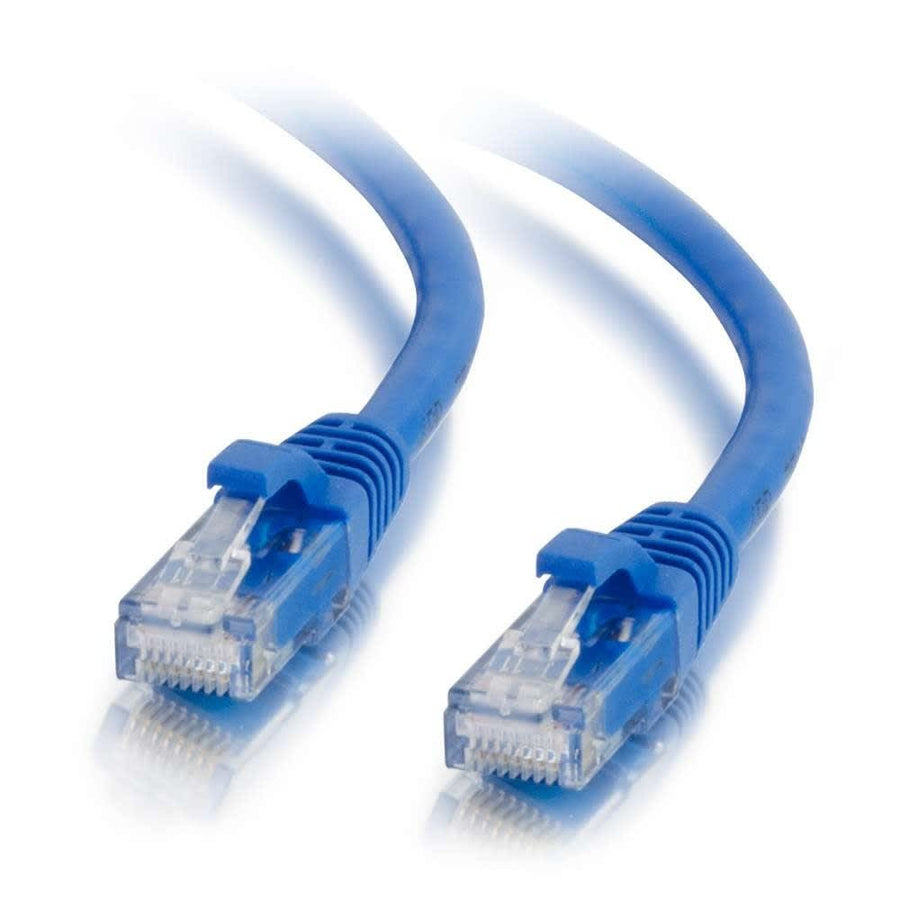

5ft (1.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
5ft Cat6a UTP patch cable in blue, featuring snagless boots for high-density switch environments and 10Gbps data support
The C2G CG00693 is a 5ft (1.5 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance 10GBase-T environments. This cable supports 10 Gigabit data transmission over a 4-pair copper configuration and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. It is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is built to provide improved alien crosstalk performance in demanding setups. The blue PVC jacket is paired with snagless boots, making it particularly effective for high-density switch applications where cable management is critical. Each cable includes an individual length label for easy identification during installation and testing. This series is available in various lengths and colors to facilitate organized, color-coded network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006930 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with my 10GbE switch?
Yes, this cable is specifically designed for 10GBase-T ports and equipment, providing the necessary performance for 10 Gigabit data transmission.
What is the maximum distance for 10 Gigabit transmission with this cable?
This Cat6a patch cable enables 10 Gigabit data transmission over 4-pair copper up to 100 meters.
Is this cable suitable for high-density patch panels?
The snagless connector hood is ideal for high-density switch and patch panel applications, ensuring easy handling in tight spaces.
What accessories are compatible with this Cat6a cable?
This cable is compatible with various components including the WP246A 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
Does this cable support color-coding for network management?
Yes, the blue jacket allows for easy color-coding, and this series is available in a variety of other colors and lengths to meet your installation needs.
