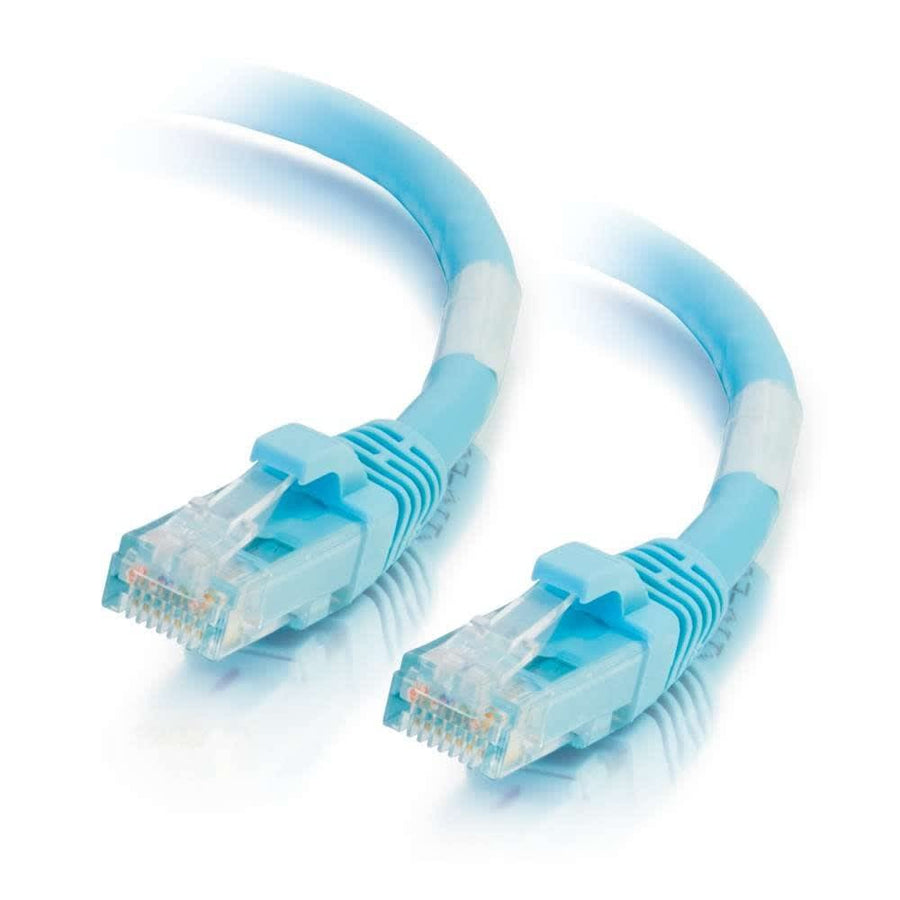

5ft (1.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua

5ft (1.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua

CG00761
IN STOCK

5ft Cat6a Snagless UTP Ethernet patch cable in Aqua, designed for 10GBase-T high-density network applications

The C2G CG00761 is a 5ft (1.5m) Snagless Unshielded Cat6a patch cable specifically engineered for 10GBase-T ports and high-speed networking equipment. This cable supports 10 Gigabit data transmission over a 4-pair copper construction, making it an ideal choice for connections to network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Because it is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, it provides a reliable solution for environments where Cat6 might only support 10 Gigabit Ethernet over limited distances. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable features a PVC jacket and a 0.24 in (6 mm) diameter. The snagless, booted RJ-45 male connectors are designed to protect the connection and are particularly effective in high-density switch applications where space is limited. This Aqua-colored cable includes an individual length label on each unit to simplify identification during installation and maintenance. This product is NDAA 889 compliant and carries a lifetime warranty.

Specifications are supplied by the manufacturer. For complete details, check the Resources section.

Key features

·Supports 10 Gigabit data transmission for 10GBase-T equipment·Fully tested to ANSI/TIA 568 C.2 Cat6a channel requirements·Snagless booted RJ-45 male connectors for high-density switch environments·Stranded 26AWG bare copper conductors with HDPE insulation·Designed for improved alien crosstalk performance

Specifications

23 fields
Main specifications 8
Cable Diameter0.24 in (6 mm)
Cable Length5 ft (1.5 m)
Shield TypeUTP
Shipping Weight0.15 lbs (0.1 kg)
Wire Gauge26
Cable ShieldingUnshielded UTP
Cable TypeCat6a
Category Performance ApplicationCat6a
All other specifications 15
ColorAqua
Conductor MaterialCopper
Conductor StrandingStranded
Connector 1(1) RJ-45 Male(1) RJ-45 Male
Connector 2(1) RJ-45 Male(1) RJ-45 Male
Connector Hood MaterialPVC
Connector TypeBootedSnagless
Insulation MaterialHDPE (High-density Polyethylene)
Jacket RatingStandard / Non-Rated
Product TypeCable
TAA CompliantNo
UPC757120007616
CertificationsCENDAA 889Prop 65REACHRoHSTSCA
Jacket MaterialPVC
WarrantyLifetime

Resources

1 document · nothing behind a form

Questions about this part

Is the C2G CG00761 compatible with 10Gb networks?

Yes, this Cat6a patch cable is designed for 10GBase-T ports, supporting 10 Gigabit data transmission over 4-pair copper cabling.

What is the wiring scheme for this patch cable?

The C2G CG00761 is wired using the 568B scheme for standard network connectivity.

What accessories are compatible with this Cat6a cable?

This cable is compatible with several components, including the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Quick Connect RJ45 Keystone Inserts such as the WP346ABK (Black) or WP346AYE (Yellow).

What certifications does this cable hold?

This product is rated for CE, REACH, RoHS, and is NDAA 889 compliant.

Does this cable include a length identifier?

Yes, each cable features an individual length label to assist with identification during network installation.
