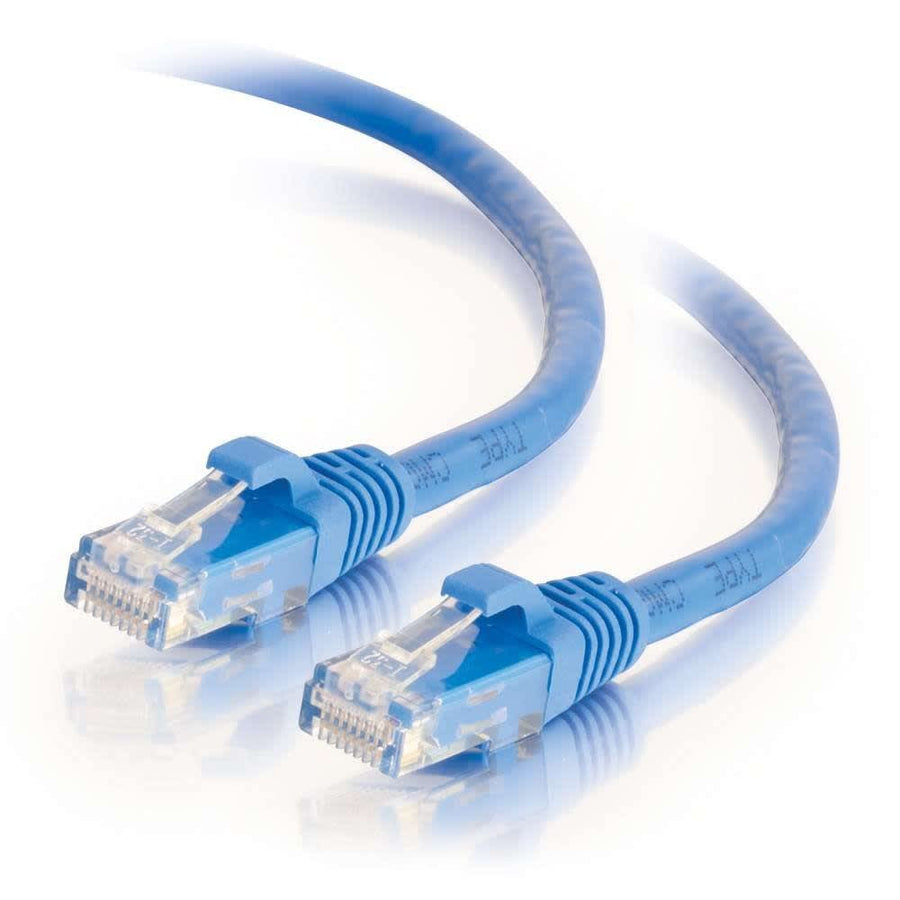

5ft (1.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
5 ft Blue Cat6 UTP patch cable featuring snagless boots and T568B wiring for high-bandwidth network distribution
The CG31341 is a 5 ft (1.5 m) blue Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution. Engineered to meet all Cat6 TIA/EIA standards, this cable reduces impedance and structural return loss (SRL). It utilizes high-quality copper stranded conductors to minimize Near-End Crosstalk (NEXT) levels. To ensure reliable performance, each individual pair is bonded together, maintaining consistent twist-spacing through to the termination point. The integrated PVC snagless boots provide extra strain relief and protect the RJ-45 clips from damage during frequent plugging and unplugging cycles. This cable uses a T568B wiring scheme and is ideal for Gigabit computer networks. For larger installations, this series is available in various colors and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313410 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG31341 is a Cat6 cable designed for high-bandwidth applications including Gigabit computer networks.
What is the difference between this and other CG31341 series cables?
This SKU is the 5 ft (1.5 m) version in Blue; the series offers 10 different colors and lengths up to 150ft.
Does the snagless boot provide any specific benefit?
The molded snagless boot protects the RJ-45 clips from snapping and provides additional strain relief during installation.
What is the wiring standard for the CG31341?
This patch cable follows the T568B wiring scheme.
Is this cable shielded or unshielded?
The CG31341 is an unshielded (UTP) cable using stranded copper conductors.
