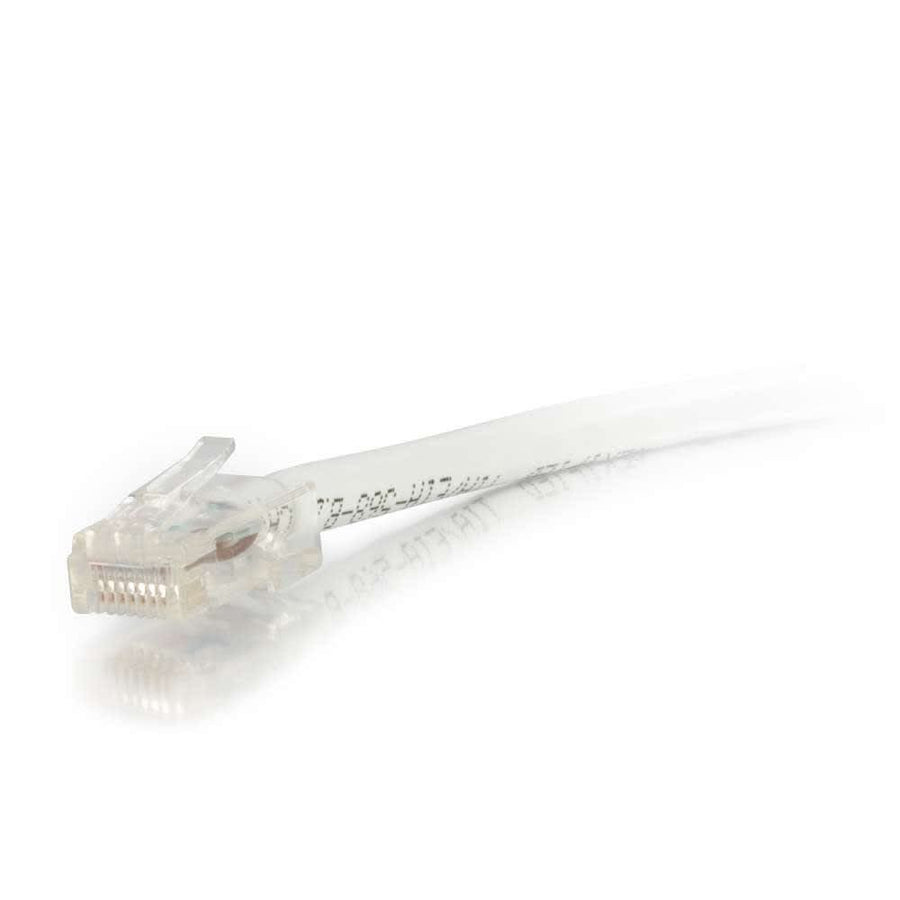

5ft (1.5m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
5ft (1.5m) white Cat6 UTP ethernet patch cable, T568B wiring, featuring stranded copper conductors
The C2G CG04236 is a 5 ft (1.5 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for high-bandwidth networking applications. It is engineered to support fast Ethernet and Gigabit computer networks, making it suitable for voice, data, and video distribution. This cable utilizes stranded copper conductors and a PVC jacket with a 0.24 in (6 mm) diameter. Each pair is bonded together to maintain consistent twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces structural return loss (SRL) and impedance. This cable uses the T568B wiring scheme and is rated for temperatures up to 75°C. The non-booted connector type features RJ-45 male ends on both sides. This specific white model is part of a larger series of Cat6 Non-Booted Patch Cables available in various lengths and colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042365 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04236?
This patch cable is terminated using the T568B wiring scheme on both RJ-45 male connectors.
Will this cable work with my Cat6 patch panel?
Yes, it is compatible with various Cat6 hardware, including the 48-Port Rack Mount Patch Panel (48845CC6) and the 24-Port Rack Mount Patch Panel (24845CC6).
What is the maximum operating temperature for this cable?
The CG04236 cable is rated for operation in temperatures up to 75°C.
Is this cable shielded or unshielded?
This is an Unshielded Twisted Pair (UTP) cable, meaning it does not feature internal shielding.
What is the difference between this and the booted versions?
The CG04236 is a non-booted connector type, meaning the RJ-45 ends do not include an additional protective rubber strain relief boot.
