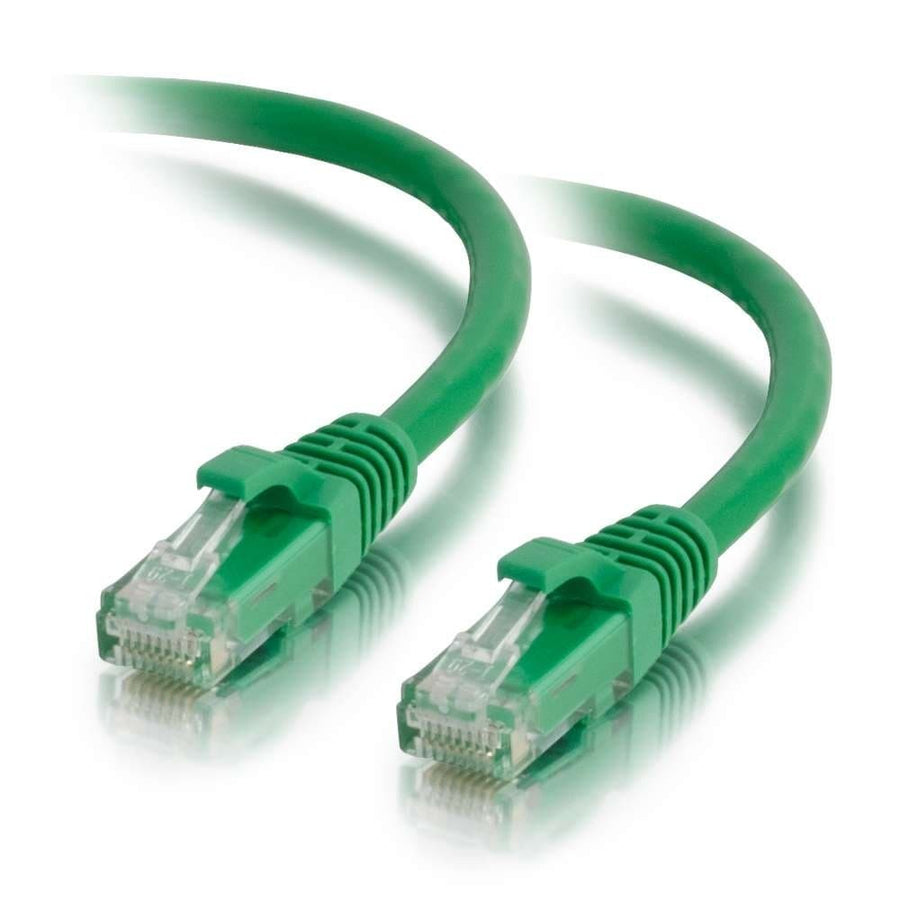

5ft (1.5m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
5ft (1.5m) green Cat5e snagless unshielded UTP patch cable with RJ-45 male connectors
The CG15185 is a 5ft (1.5m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution applications. This green cable meets all Cat5e TIA/EIA standards and is engineered to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through the termination point, a design that helps minimize Near-End Crosstalk (NEXT) levels. Constructed with high-quality 24 AWG stranded copper conductors, this cable provides reliable connectivity for fast Ethernet networks. The molded snagless boot protects the RJ-45 clips from damage during installation and provides extra strain relief. With a 350 mHz bandwidth and a 0.21 in (5.3 mm) cable diameter, this unshielded twisted pair (UTP) cable is an efficient solution for color-coded network environments. This product is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151852 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
