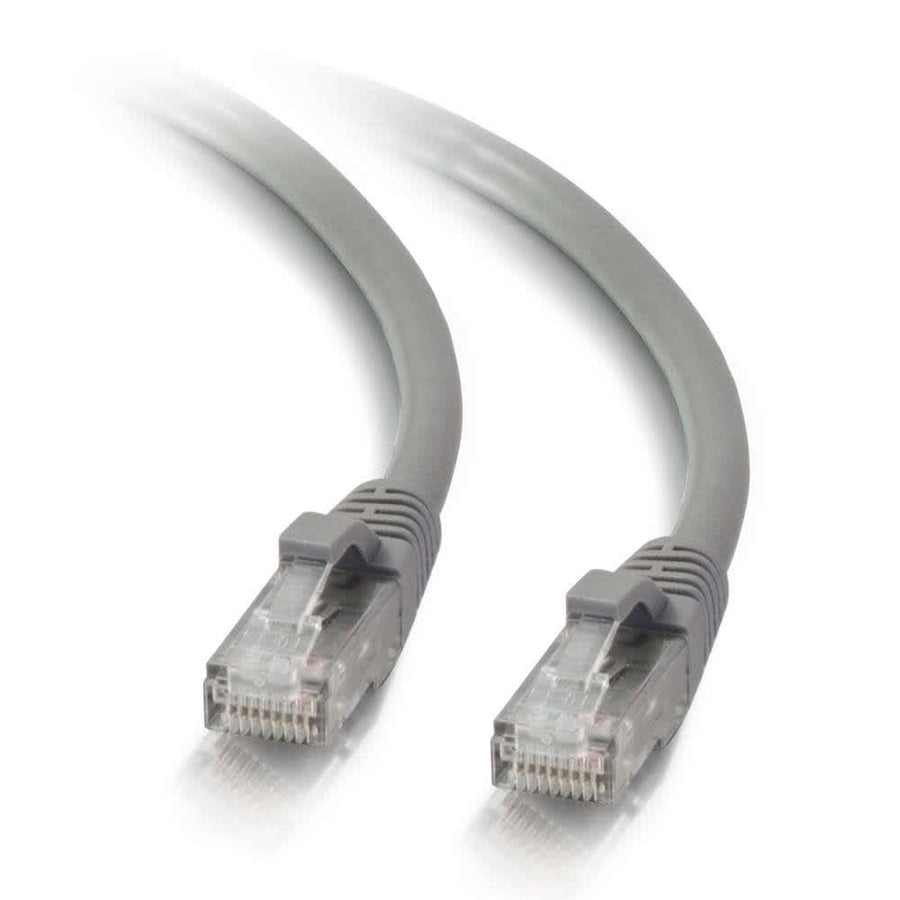

5ft (1.5m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
5ft Cat5e snagless patch cable with unshielded UTP construction and gray PVC jacket
The C2G CG15187 is a 5ft (1.5m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-speed network environments. This gray cable is engineered for bandwidth-intensive applications, including voice, data, and video distribution, meeting all TIA/EIA Cat5e standards. It features a 350 mHz bandwidth capability and utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each pair is bonded to maintain consistent twist-spacing up to the termination point, which helps reduce impedance and structural return loss (SRL). This cable features two RJ-45 male connectors with snagless, booted PVC hoods that protect the clips from damage during installation and provide added strain relief. With a 0.21 in (5.3 mm) cable diameter and 24 AWG wire gauge, this unshielded twisted pair cable provides a reliable connection for standard network setups. This SKU is part of a broader series available in multiple colors and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151876 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the length and color of the CG15187 cable?
The CG15187 is a 5ft (1.5 m) patch cable featuring a gray PVC jacket.
Will this cable work for high-bandwidth video or data applications?
Yes, it is designed for bandwidth-intensive applications and meets all Cat5e TIA/EIA standards with a 350 mHz bandwidth.
What type of connector does the CG15187 use?
It uses two RJ-45 male connectors with a snagless, booted design to protect the clips and provide strain relief.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable using 24 AWG stranded copper conductors.
What other colors and lengths are available in this series?
This series is available in various colors and lengths up to 150ft; the CG15187 specifically is the 5ft gray version.
