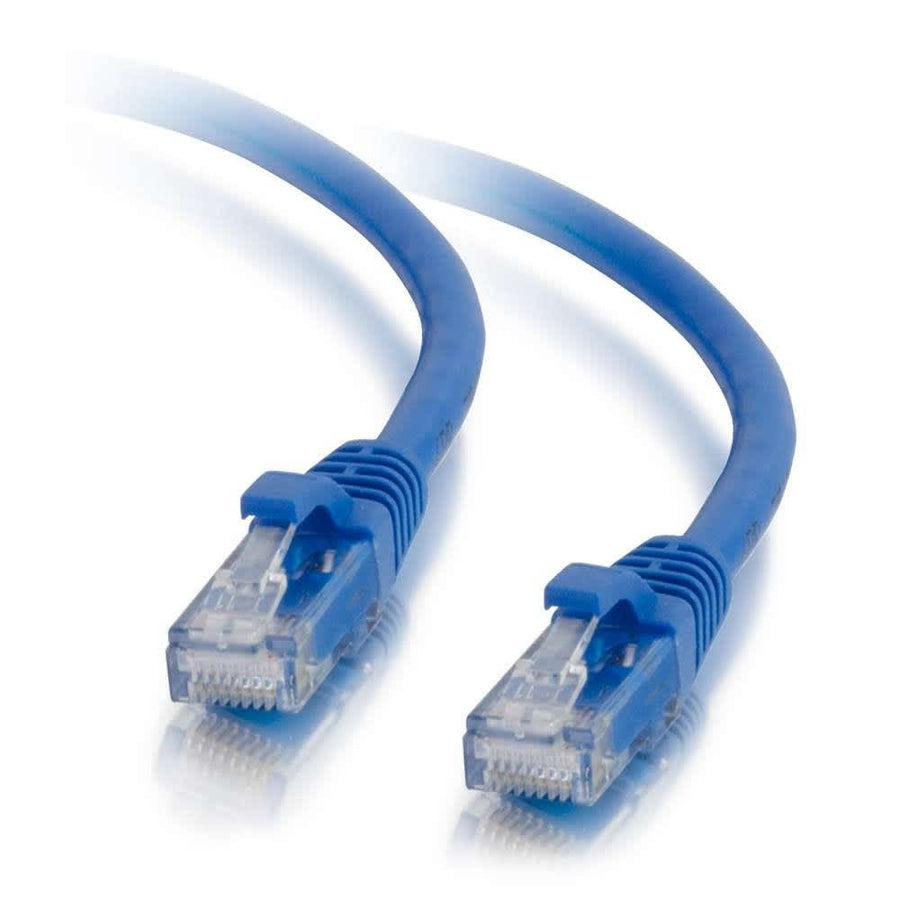

5ft (1.5m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
5ft Cat5e snagless unshielded UTP patch cable in blue with stranded copper conductors and RJ-45 male connectors
The CG15188 is a 5ft (1.5 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This blue cable utilizes stranded copper conductors and features a T568B wiring scheme to meet all Cat5e TIA/EIA standards. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together, which helps maintain twist-spacing through to the termination point. This design also drastically reduces impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and a PVC jacket with a non-rated rating. For installation ease, the molded snagless boot protects the RJ-45 male clips from damage during plugging and unplugging while providing extra strain relief. This series is also available in various other colors and lengths up to 150ft for diverse network color-coding needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151883 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this Cat5e cable work with my network modules?
Yes, this cable is compatible with various modules including the AC1000 6-Port Network Interface Module and the AC1058 8-Port Cat5e Network Interface Module.
What is the maximum length available in this series?
While this specific SKU is 5ft (1.5 m), the Cat5e Snagless Patch Cable series is available in lengths up to 150ft.
What kind of connectors does the CG15188 have?
The CG15188 features two RJ-45 male connectors with a snagless, booted design for added protection.
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution applications.
What are the electrical specifications for this patch cable?
This cable features a 350 mHz bandwidth, a maximum conductor DC resistance of 89 Ohm/km, and a minimum insulation resistance of 100 Ohm/km.
