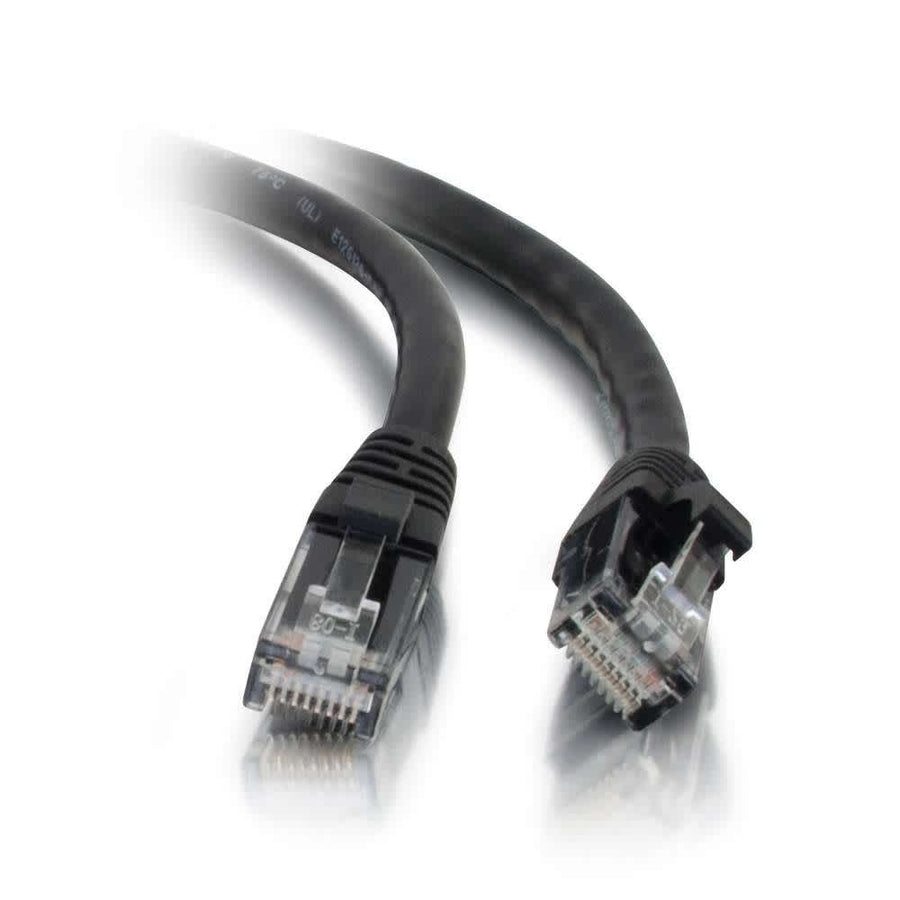

5ft (1.5m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
5ft (1.5m) Cat5e unshielded UTP Ethernet patch cable, black, with snagless boots for strain relief
The C2G CG15189 is a 5 ft (1.5 m) Cat5e snagless patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet networks. This unshielded twisted pair (UTP) cable features a 24 AWG stranded copper conductor to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line, right up to the RJ-45 termination points, which helps reduce impedance and structural return loss (SRL). This cable utilizes a T568B wiring scheme and provides a 350 mHz bandwidth. The molded, snagless PVC boots provide extra strain relief and protect the connector clips from damage during repeated plugging and unplugging. This black cable is part of a larger series that includes various colors and lengths up to 150 ft to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151890 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49

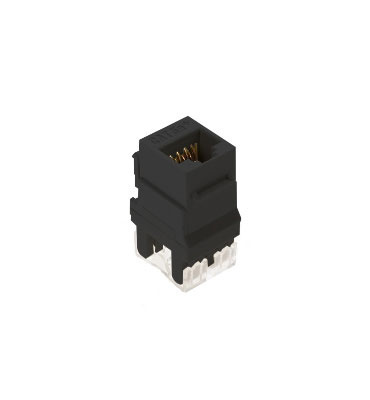

Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the wiring scheme for the C2G CG15189?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Does the snagless boot provide extra protection?
Yes, the molded PVC snagless boot is designed to protect the connector clips from snapping during installation and provides additional strain relief.
Is this cable suitable for high-bandwidth video applications?
This Cat5e cable is rated for bandwidth-intensive voice, data, or video distribution applications with a 350 mHz bandwidth.
What are the conductor specifications for this cable?
The cable uses 24 AWG stranded copper conductors and is an unshielded (UTP) construction.
What other colors are available in this C2G series?
This series is available in 10 different colors, allowing you to color-code your network installation.
