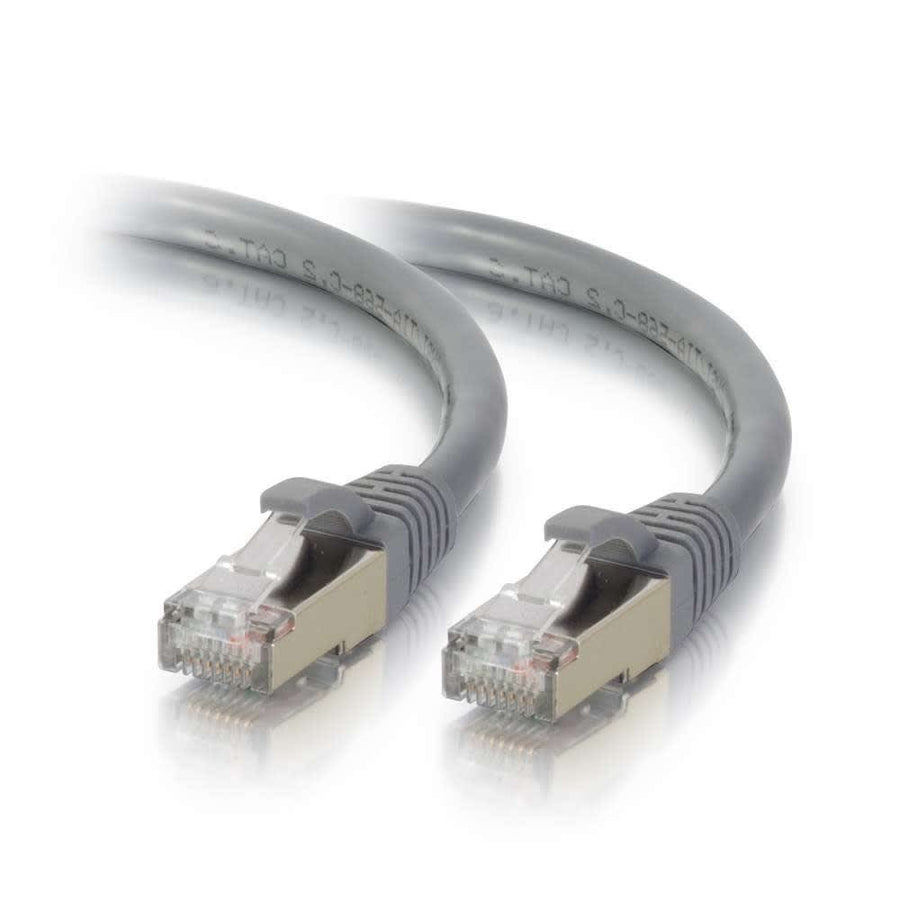

5ft (1.5m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Gray
5ft (1.5m) Cat5e shielded STP patch cable with snagless boots for EMI/RFI protection in noisy environments
The C2G CG27245 is a 5ft (1.5m) Cat5e shielded STP ethernet network patch cable designed specifically for connecting hardware in environments prone to electromagnetic interference. This F/UTP cable features an overall foil shielding and a drain wire to provide essential protection against EMI/RFI noise. The cable utilizes 24 AWG stranded copper conductors and is configured with TSB 568B (AT+T 258A) wiring. For physical durability, each RJ-45 male connector is housed in a PVC snagless boot to provide extra strain relief during installation and maintenance. This shielded solution meets or exceeds industry standards for NEXT and return loss. For maximum protection against interference, it is recommended to use this cable alongside C2G Cat5e shielded patch panels and shielded keystone jacks to ensure complete end-to-end shielding in your network installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272458 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this Cat5e cable work in environments with high electrical noise?
Yes, the F/UTP shielding and drain wire are designed to protect your signal from EMI/RFI interference in noisy environments.
What is required for full end-to-end shielding in my installation?
For maximum protection, pair this cable with Cat5e shielded patch panels and shielded keystone jacks to complete the shielding path.
What type of wiring standard does this patch cable follow?
The CG27245 is wired to the TSB 568B (AT+T 258A) standard.
Does this cable come with protection for the RJ-45 connectors?
Yes, it features snagless molded PVC boots that provide additional strain relief and protect the connectors during handling.
What is the conductor material and gauge for this cable?
This cable uses 24 AWG stranded copper conductors with 50 micron gold-plated RJ-45 male connectors.
