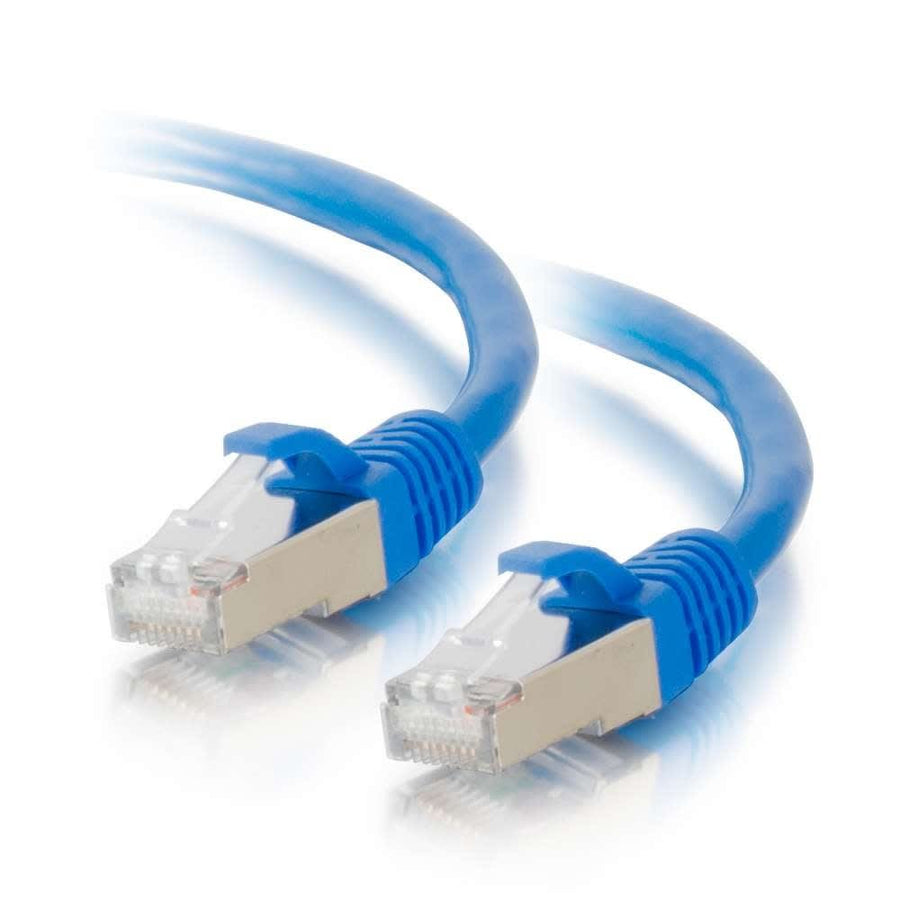

5ft (1.5m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
5ft (1.5m) Cat5e STP shielded patch cable in blue, featuring 24 AWG stranded copper conductors and snagless boots
The C2G CG27246 is a 5ft (1.5m) Cat5e shielded patch cable designed specifically for maintaining network integrity in environments prone to heavy EMI/RFI noise. This STP (Shielded Twisted Pair) cable utilizes an F/UTP construction, featuring an overall cable foil shield and a drain wire to mitigate electromagnetic interference. The internal 4-pair construction uses 24 AWG stranded copper conductors to meet or exceed industry standards for NEXT and return loss. Each end is terminated with a 50 micron gold-plated RJ45 male connector, housed in a PVC snagless boot that provides added strain relief and protects the connector during installation and use. To ensure a complete, high-performance shielded link, it is recommended to pair this cable with C2G Cat5e shielded patch panels and shielded keystone jacks. This blue cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272465 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this CG27246 cable work in high-interference environments?
Yes, the F/UTP shielding in this CG27246 cable provides an overall foil shield and drain wire to protect against EMI/RFI noise.
What do I need to buy to ensure full end-to-end shielding?
For maximum protection, use this cable in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What is the conductor gauge and material for the CG27246?
The CG27246 features 24 AWG stranded copper conductors in a 4-pair configuration.
Does this cable feature snagless connectors?
Yes, the CG27246 is equipped with booted, snagless RJ45 male connectors for added durability and strain relief.
Is the CG27246 suitable for high-temperature environments?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
