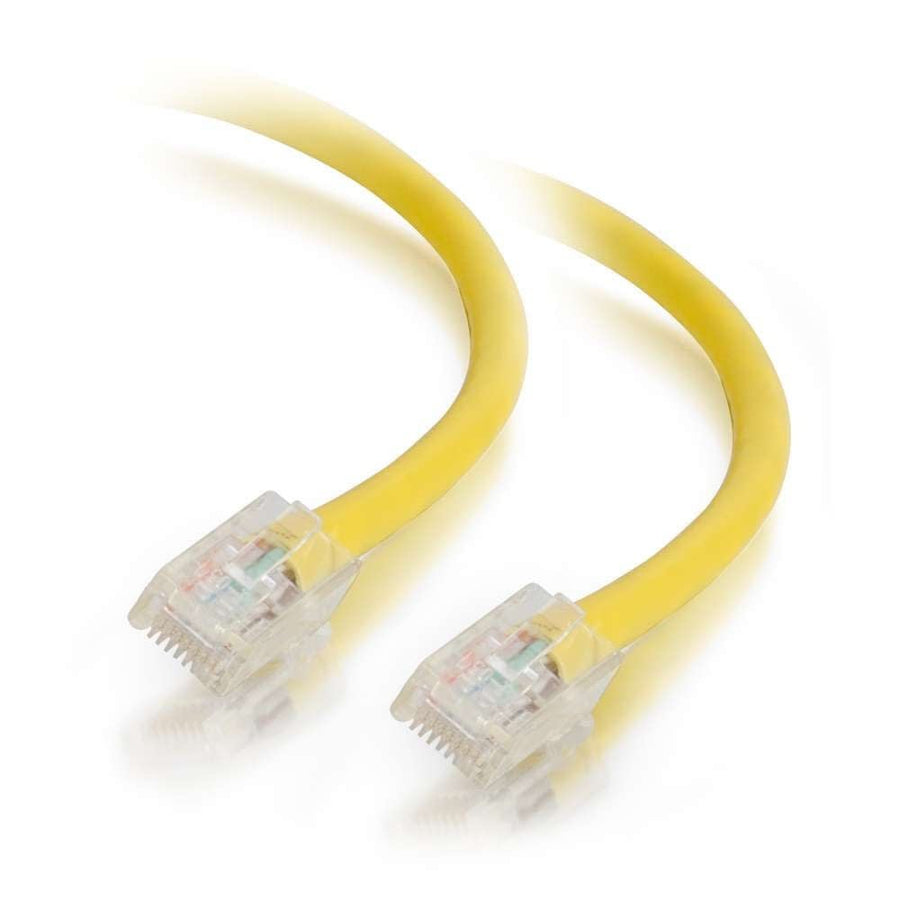

5ft (1.5m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
5ft yellow Cat5e UTP patch cable with non-booted RJ-45 connectors and 24 AWG stranded copper conductors
The C2G CG22682 is a 5ft (1.5m) Cat5e Unshielded Twisted Pair (UTP) patch cable designed for bandwidth-intensive voice, data, or video distribution applications in fast Ethernet computer networks. This cable utilizes 24 AWG stranded copper conductors and is constructed to meet all Cat5e TIA/EIA standards. By bonding individual pairs together, the design helps maintain precise twist-spacing throughout the entire line up to the termination point, which drastically reduces impedance and structural return loss (SRL). This construction is specifically intended to minimize Near-End Crosstalk (NEXT) levels. The cable features a non-booted connector type with RJ-45 male terminations on both ends and follows the T568B wiring scheme. This yellow PVC jacketed cable is rated for CMG in-wall installation and is suitable for connections between network adapters, hubs, switches, and routers. It is part of a wider series available in multiple colors and lengths to facilitate easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226826 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the wiring scheme for the C2G CG22682?
This patch cable uses the T568B wiring scheme for both RJ-45 male connectors.
Can this cable be used for in-wall installations?
Yes, the cable features a CMG rated jacket suitable for in-wall use.
What are the electrical characteristics of this Cat5e cable?
The conductor DC resistance is 89 Ω/km maximum.
Does this cable include a boot for the connectors?
No, this is a non-booted connector type cable.
What other colors and lengths are available in this series?
This series is available in 10 colors and lengths up to 150ft.
