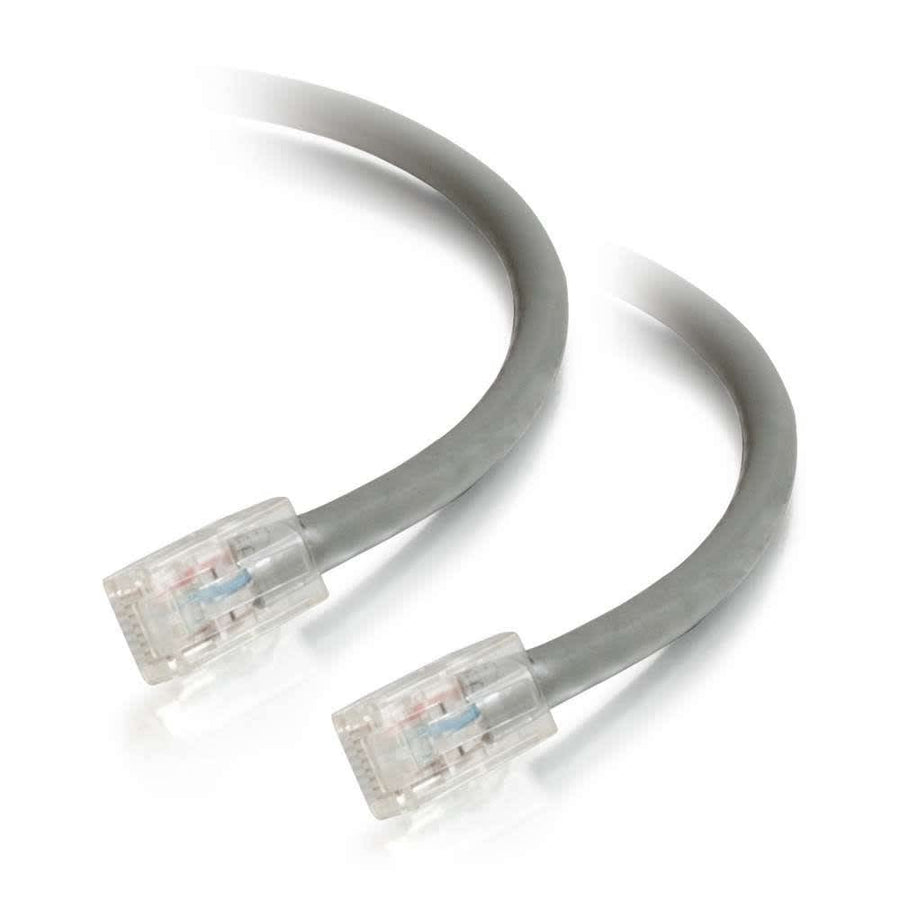

5ft (1.5m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
5ft Cat5e unshielded UTP patch cable, 24 AWG stranded copper, gray finish
The C2G CG22678 is a 5ft (1.5m) Cat5e non-booted patch cable designed for high-bandwidth network environments requiring reliable voice, data, or video distribution. This unshielded twisted pair (UTP) cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point, which significantly reduces impedance and structural return loss (SRL). This construction ensures the cable meets all Cat5e TIA/EIA performance standards for fast Ethernet applications. The cable features a PVC jacket with a 0.21 in (5.3 mm) diameter and utilizes the T568B wiring scheme. It is an ideal solution for connecting network adapters, hubs, switches, and routers. This gray cable is part of a larger series available in up to 10 different colors and lengths up to 150ft to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226789 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum length available in this cable series?
This series of Cat5e patch cables is available in lengths up to 150ft.
What type of conductors are used in the CG22678?
The CG22678 uses 24 AWG stranded copper conductors to help minimize Near-End Crosstalk.
Will this cable work with my network switch or router?
Yes, this cable is designed for use with network adapters, hubs, switches, and routers.
Does this cable support in-wall installation?
This model features a CMG In-Wall Rated jacket for use in such environments.
What is the wiring standard for this patch cable?
The CG22678 is wired using the T568B scheme and features RJ-45 male connectors.
