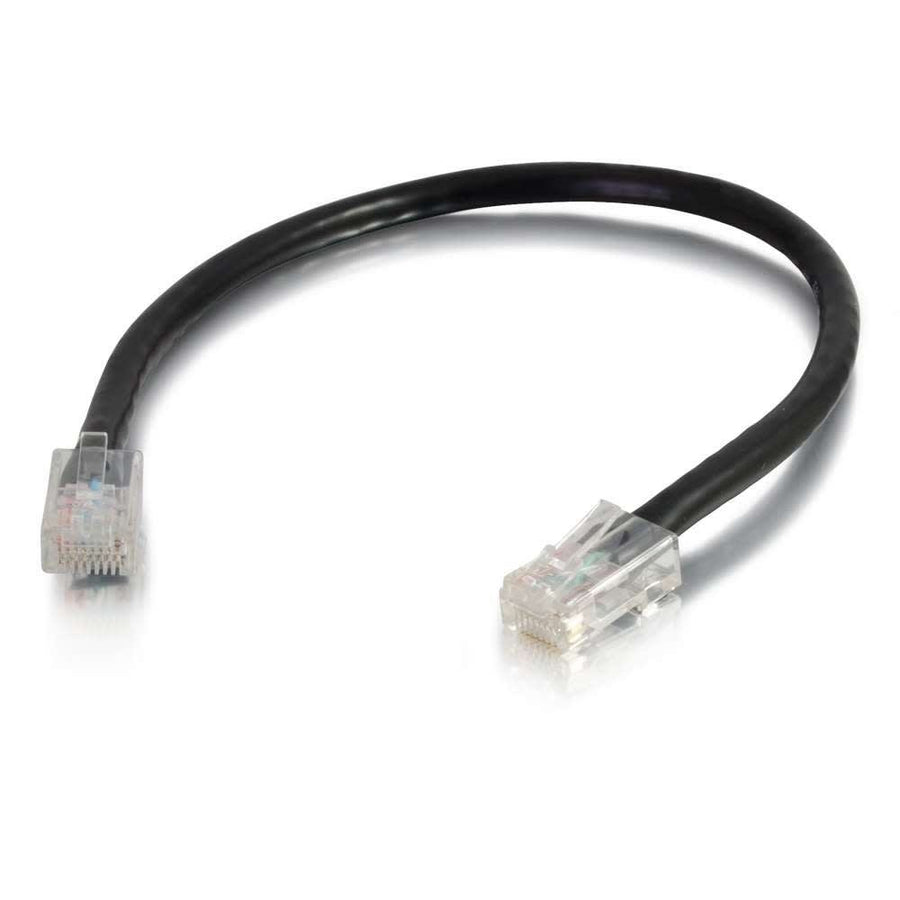

5ft (1.5m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
5ft Cat5e unshielded UTP patch cable with non-booted RJ-45 connectors, ideal for network adapters, hubs, and switches
The C2G CG22683 is a 5ft (1.5m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive applications including voice, data, and video distribution. This cable is engineered to meet all Cat5e TIA/EIA standards, providing a reliable connection for network adapters, hubs, switches, and routers. The construction features 24 AWG stranded copper conductors, which work together to minimize Near-End Crosstalk (NEXT) levels and reduce both impedance and structural return loss (SRL). Each individual pair is bonded to help maintain consistent twist-spacing from the connector to the termination point. This unshielded (UTP) cable features a black PVC jacket with a 0.21 in (5.3 mm) diameter. This specific SKU uses a non-booted connector type and follows the T568B wiring scheme. For complex installations, this cable series is available in 10 different colors to facilitate easy color-coding within a server rack or network closet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226833 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is this Cat5e patch cable used for?
This cable is designed for high-bandwidth network applications including voice, data, and video distribution, making it suitable for use with hubs, switches, routers, and network adapters.
Is this C2G patch cable compatible with keystones?
Yes, this cable can be used in conjunction with various compatible components such as the AC1000 6-Port Network Interface Module or the WP3458BK Black Keyed RJ45 Keystone Connector.
Does this cable support color-coding for network organization?
While this specific SKU is Black, the Cat5e Non-Booted Patch Cable series is available in 10 different colors to assist with organized network installation.
What are the electrical and physical specifications of the CG22683?
The cable is 5ft (1.5m) long with a 0.21 in (5.3 mm) diameter and features 24 AWG stranded copper conductors with a maximum conductor DC resistance of 89 /km.
What is the wiring scheme used for this Ethernet cable?
The C2G CG22683 is wired using the T568B scheme and features RJ-45 male connectors on both ends.
