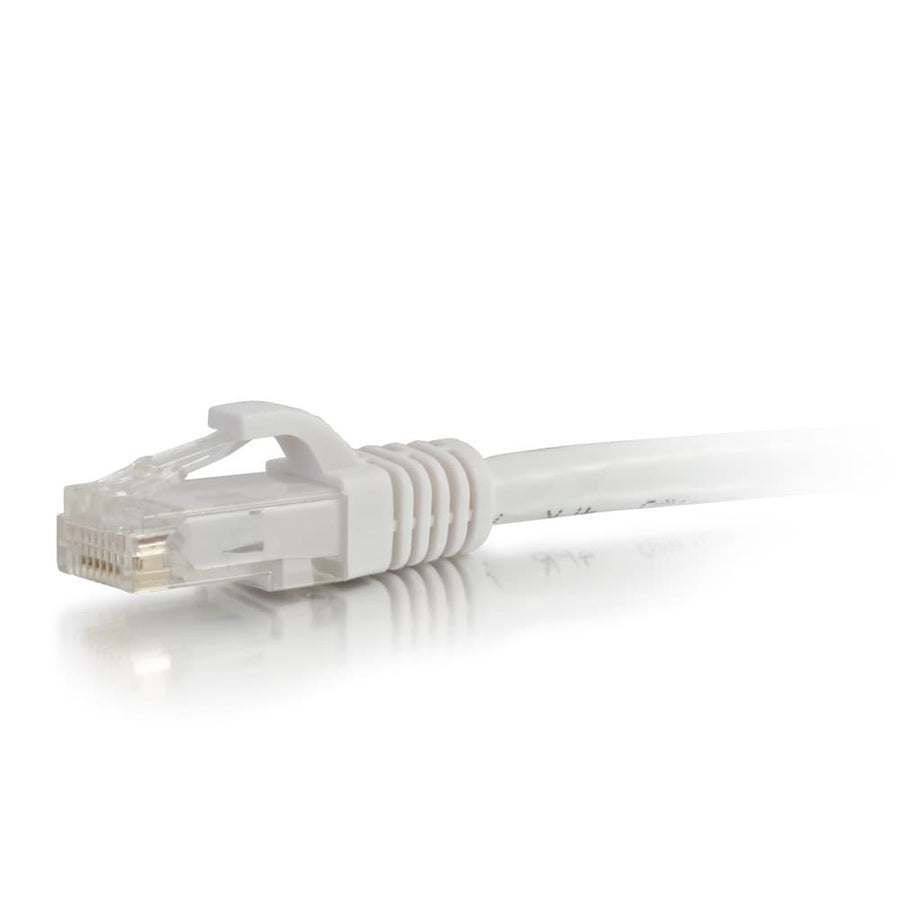

50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - White
50ft Cat6a Unshielded UTP patch cable, white snagless design, supports 10 Gigabit data transmission
The C2G CG50777 is a 50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance 10GBase-T applications. This white patch cable supports 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The cable features 26AWG bare copper stranded conductors and HDPE insulation, encased in a PVC jacket with a 0.24 in (6 mm) diameter. For ease of use in high-density environments, this cable includes snagless PVC connector hoods to protect the RJ-45 male terminations and prevent accidental disconnects. Each cable is individually labeled with its length for quick identification during installation. This stranded UTP cable operates within a temperature rating of 75°C and follows the 568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.31 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507772 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, the CG50777 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4-pair copper cable up to 100 meters.
Is this patch cable suitable for high-density network switches?
Yes, the snagless connector design is specifically intended for use in high-density switch applications to prevent snagging and protect the RJ-45 connections.
What is the wiring scheme for the CG50777?
This Cat6a patch cable utilizes the 568B wiring scheme.
What compatible accessories can I use with this series?
This cable is part of a broad ecosystem that includes the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Quick Connect RJ45 Keystone Inserts.
Does this cable require specialized tools for installation?
The CG50777 is a pre-terminated patch cable; no specialized installation tools are required for connection to your network equipment.
