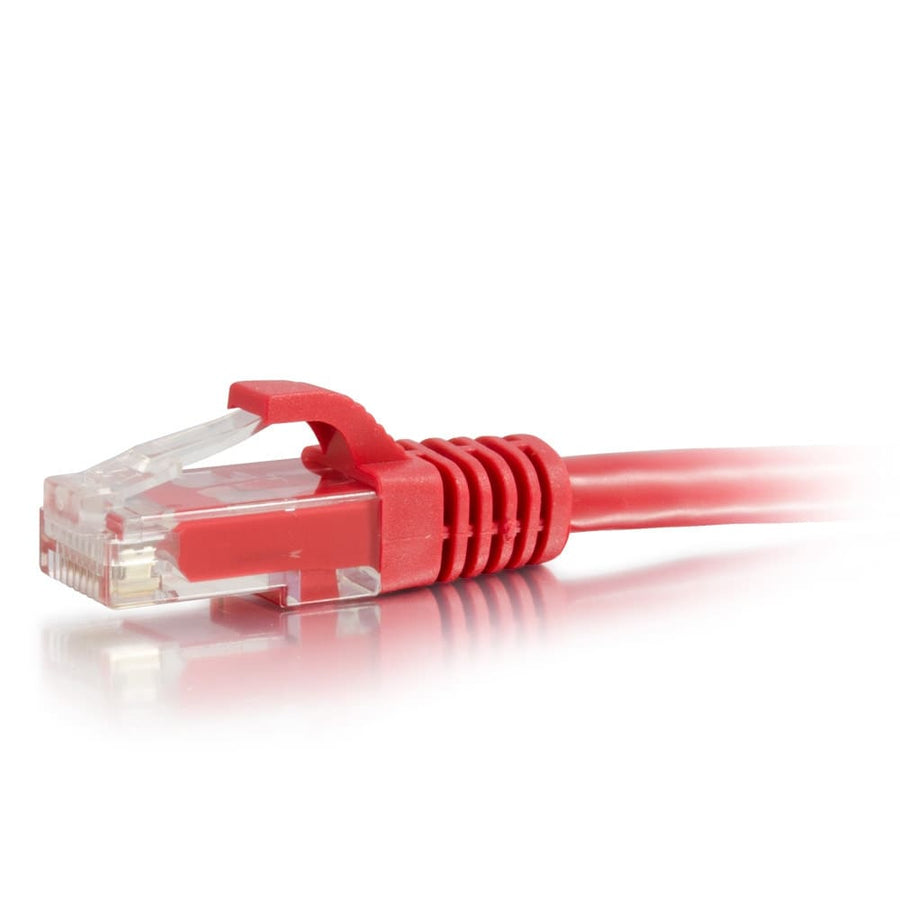

50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Red
50ft Red Cat6a Snagless Unshielded UTP Ethernet Patch Cable for 10GBase-T network connections
The C2G CG50815 is a 50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in Red, designed for high-performance 10GBase-T environments. This stranded copper cable supports 10 Gigabit data transmission over 4-pair copper cabling, allowing for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to standard Cat6 cabling. Constructed with 26AWG bare copper conductors and HDPE insulation, this cable features a snagless, booted RJ-45 male to RJ-45 male connector configuration. The PVC jacket and PVC connector hood material provide a durable build for high-density environments. This cable is an ideal solution for connecting network adapters, hubs, switches, routers, and patch panels where color-coding is required for organized network management. Each cable includes an individual length label for easy identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.31 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508151 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will the CG50815 work for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission for connections up to 100 meters.
What is the wiring scheme for this patch cable?
This C2G patch cable utilizes the 568B wiring scheme.
Is this cable suitable for high-density switch environments?
Yes, the snagless, booted RJ-45 connectors are specifically designed to be ideal for high-density switch applications.
Can I use this cable to color-code my network installation?
Yes, the Red jacket and individual length labels make this SKU ideal for color-coded network organization.
What is the temperature rating for the CG50815?
This cable has a temperature rating of 75°C.
