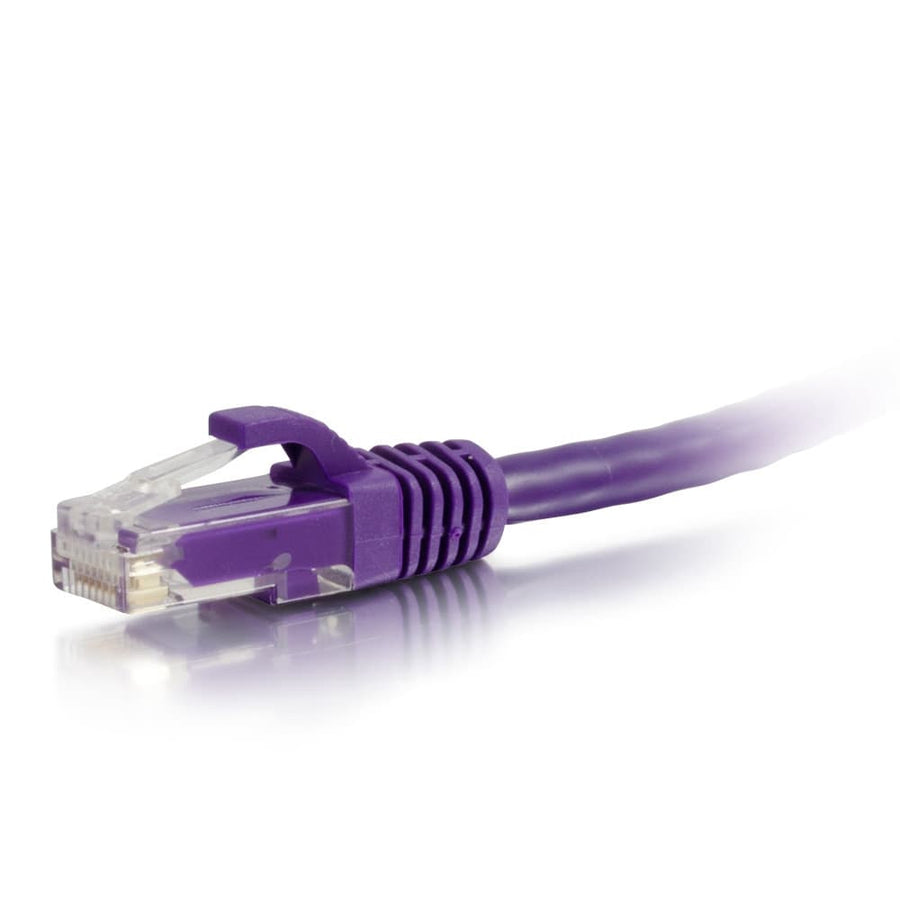

50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
50ft Purple Cat6a Snagless UTP Ethernet patch cable for 10GBase-T network connections
The C2G CG50834 is a 50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in purple, designed to facilitate high-speed data transmission. This cable supports 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is engineered to enable 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, which helps provide improved alien crosstalk performance compared to older cabling standards. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. To assist with high-density switch applications, the connectors feature a snagless, booted PVC hood. This cable utilizes a 568B wiring scheme and is rated for temperatures up to 75°C. Each cable includes an individual length label for rapid identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.31 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508342 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with 10 Gigabit Ethernet equipment?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment like switches, routers, and network adapters to support 10 Gigabit data transmission.
Is this cable suitable for high-density patch panels?
Yes, the snagless booted connectors are specifically designed to facilitate easy installation and management in high-density switch environments.
What is the maximum transmission distance for this cable?
This Cat6a patch cable allows for connections up to 100 meters using a 4 pair copper cable configuration.
Does this cable support color-coding in a data center?
Yes, this specific SKU is purple, which helps installers use color-coding to organize and identify different sections of a network installation.
What testing standards does this cable meet?
Each cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements to ensure reliable performance.
