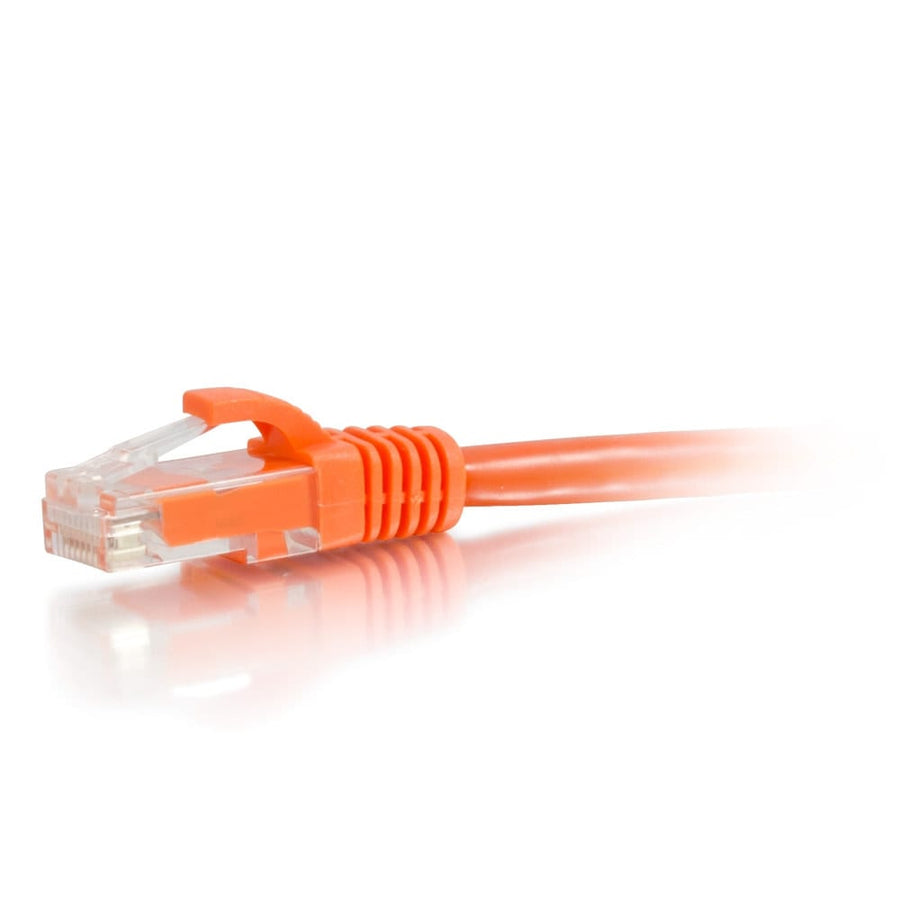

50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
Orange 50ft Cat6a snagless UTP patch cable for 10GbE transmission and high-density switch applications
The C2G CG50853 is a 50ft (15.2 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-speed 10Gigabit data transmission. This orange cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, making it a reliable choice for 10GBase-T ports on network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The cable features 26AWG bare copper stranded conductors and high-density polyethylene (HDPE) insulation to support high-performance connectivity up to 100 meters. To improve alien crosstalk performance in demanding environments, this cable is constructed with high-quality plugs and a PVC jacket. For easier cable management and organization, each cable includes an individual length label. The snagless, booted connector design is specifically optimized for high-density switch applications where space is limited, preventing accidental disconnection during maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.28 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508533 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this C2G CG50853 cable is designed for 10GBase-T ports and enables 10 Gigabit data transmission over its 50ft (15.2m) length.
Is this cable suitable for high-density patch panels and switches?
Yes, the snagless, booted RJ-45 male connectors are specifically designed to prevent snags in high-density switch environments.
What is the wiring scheme for the CG50853?
The cable follows the standard 568B wiring scheme for consistent network connectivity.
What additional hardware is needed to use this with a keystone jack?
You can pair this with various Cat6a Keystone Inserts, such as the WP346AOR in orange, or other colors like black (WP346ABK) or blue (WP346ABE).
What certifications does this cable carry?
The CG50853 is CE, REACH, and RoHS compliant, and is designed to meet ANSI/TIA 568 C.2 channel requirements.
