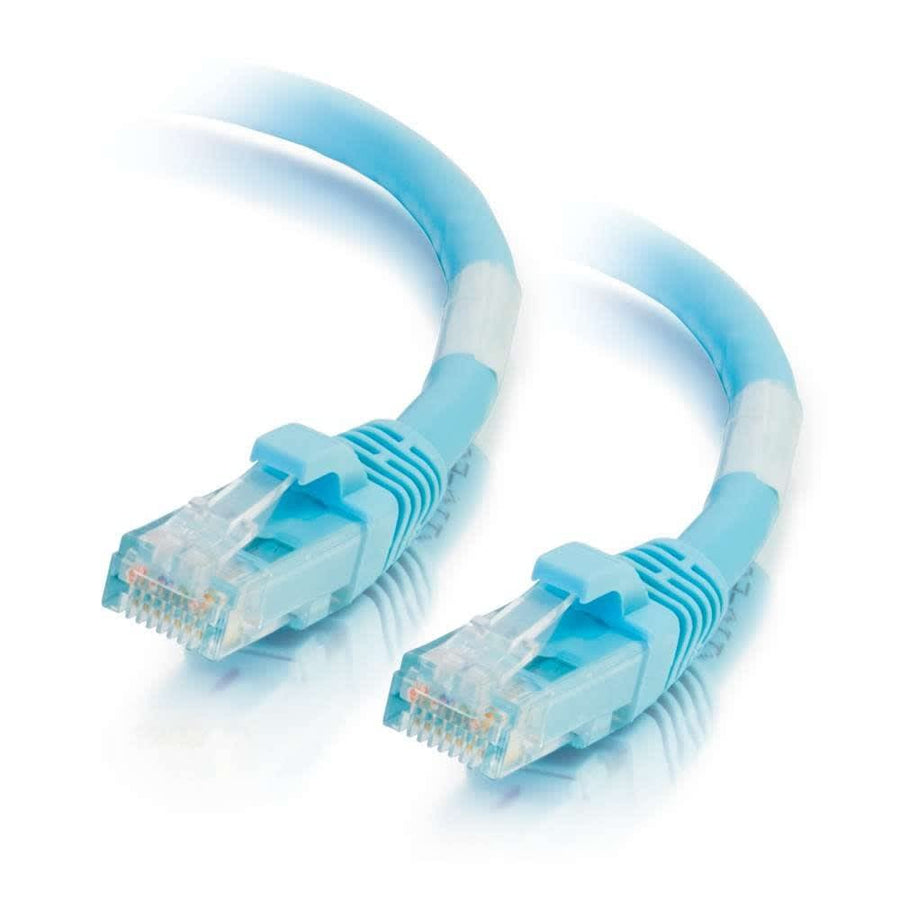

50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Patch Cable in Aqua
The C2G CG50873 is a 50ft (15.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance data environments. This cable is engineered to support 10GBase-T applications, facilitating 10 Gigabit data transmission over 4-pair copper cabling for connections reaching up to 100 meters. It is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. This specific model features a 26AWG stranded copper conductor with HDPE insulation and a PVC jacket. To optimize performance in high-density switch applications, the cable includes a snagless PVC connector hood to protect the termination. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring improved alien cross talk performance. For easier network management, this aqua-colored cable includes an individual length label on each cord for quick identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.27 lbs (0.6 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508731 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Yes, this CG50873 cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4-pair copper up to 100 meters.
Yes, this CG50873 cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4-pair copper up to 100 meters.
Yes, the snagless hood on this CG50873 cable is specifically designed to protect connections in high-density switch applications.
Yes, the snagless hood on this CG50873 cable is specifically designed to protect connections in high-density switch applications.
This Cat6a cable provides the improved alien cross talk performance required for 10 Gigabit Ethernet, which standard Cat6 cabling may only support over limited distances.
This Cat6a cable provides the improved alien cross talk performance required for 10 Gigabit Ethernet, which standard Cat6 cabling may only support over limited distances.
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for technical details regarding this series.
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for technical details regarding this series.
