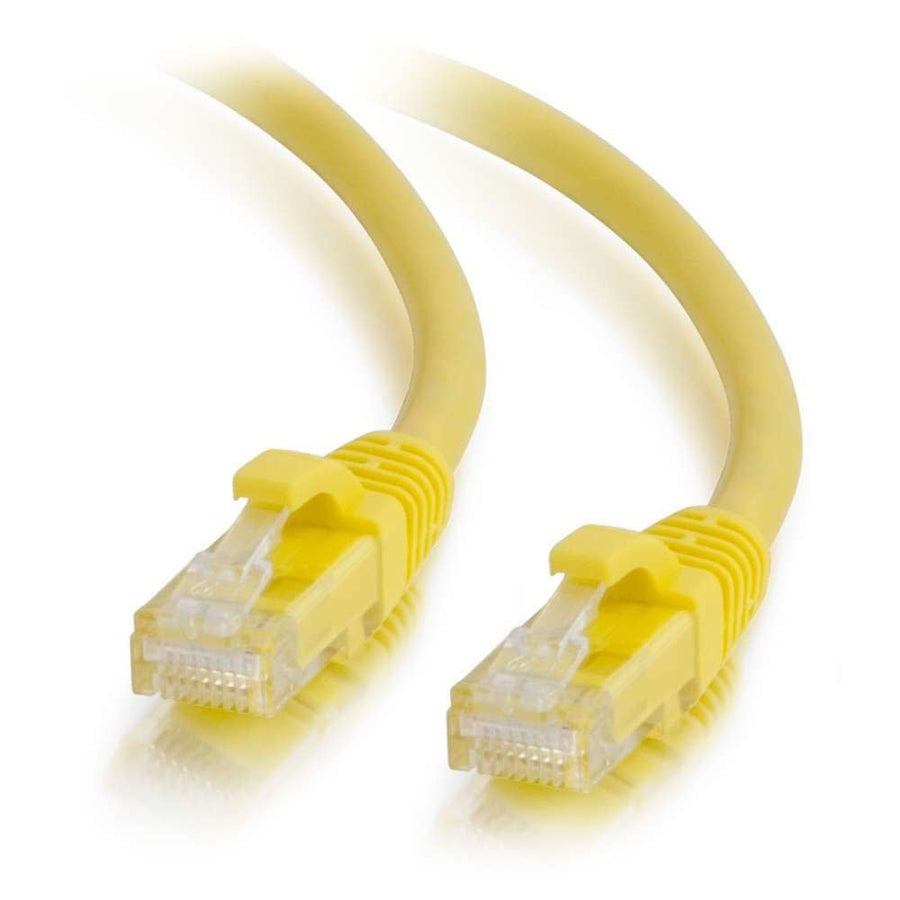

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat6 UTP patch cable, 50 ft (15.2 m) length, with snagless boots for clip protection and strain relief
The C2G CG27196 is a 50 ft (15.2 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in yellow, designed for high-bandwidth applications including voice, data, and video distribution. This cable meets all Cat6 TIA/EIA standards, providing improved performance by reducing impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire 15.2 m line, which helps minimize Near-End Crosstalk (NEXT). The construction utilizes high-quality stranded copper conductors with a 24 AWG wire gauge. For ease of installation, the cable features molded, snagless boots that protect the RJ-45 clips from damage during deployment and provide additional strain relief. This unshielded (UTP) cable uses PVC jacket material and is available in various colors for network organization. The product is NDAA 889 compliant and carries CE, REACH, and RoHS certifications. This cable is part of a series that offers multiple colors and lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.33 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271963 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my patch panels?
Yes, this cable is compatible with various accessories including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (SKU 24845CC6).
Is this cable suitable for high-speed Gigabit networks?
Yes, it is designed for fast Ethernet and Gigabit networks that require high bandwidth for data and video distribution.
Does this cable include the necessary connectors?
This cable comes with two RJ-45 Male connectors, both featuring a molded, snagless boot for added durability.
What is the difference between this and other C2G Cat6 cables?
This SKU is the 50 ft yellow version; the series offers up to 150ft in 10 different colors for specific color-coding needs.
What certifications does this cable hold?
This product is compliant with NDAA 889 and carries CE, REACH, and RoHS certifications.
