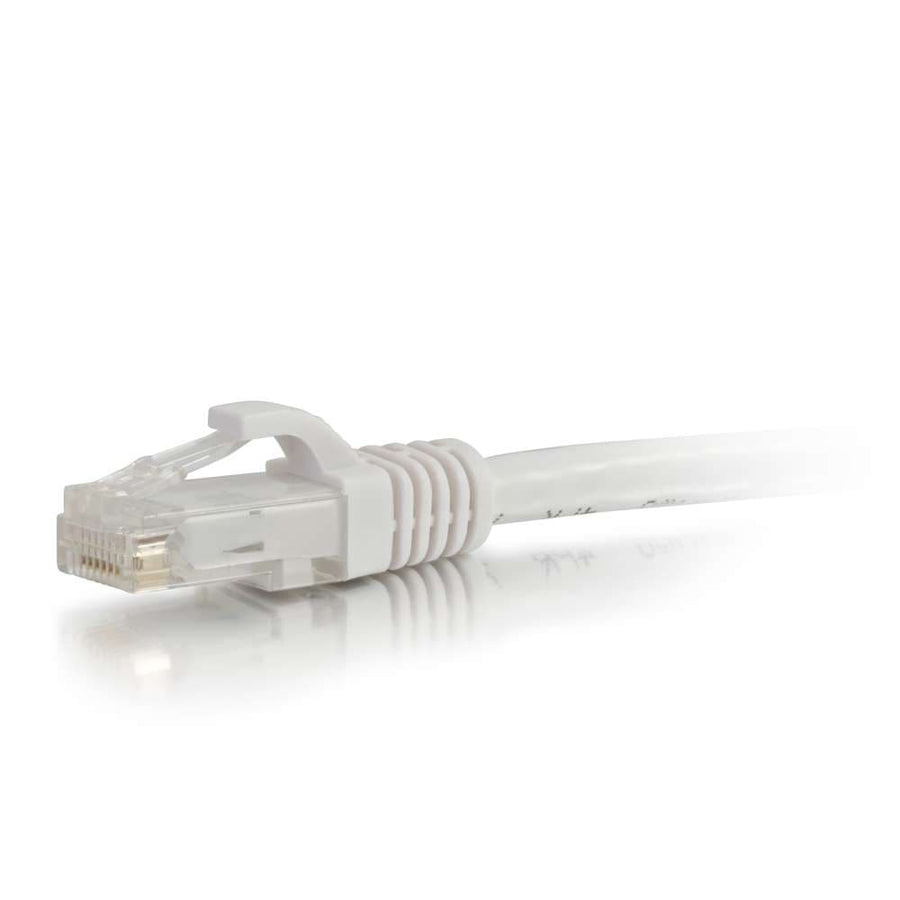

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White

CG27166
IN STOCK

50ft Cat6 unshielded UTP patch cable in white with snagless boots and RJ-45 male connectors

The C2G CG27166 is a 50ft (15.2m) Cat6 Snagless Patch Cable designed for high-bandwidth environments including fast Ethernet and Gigabit computer networks. This white, unshielded UTP cable is engineered for voice, data, or video distribution applications that require strict adherence to Cat6 TIA/EIA standards. It features stranded copper conductors that help minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing up to the termination point, which drastically reduces impedance and structural return loss (SRL). The cable has a 0.24 in (6.2 mm) diameter and uses a PVC jacket and hood material. Each end is terminated with an RJ-45 male connector protected by a molded, snagless boot that provides extra strain relief and prevents the locking clips from being damaged during installation or frequent use. This cable follows the T568B wiring scheme and is rated for standard, non-rated applications.

Specifications are supplied by the manufacturer. For complete details, check the Resources section.

Key features

·50 ft (15.2 m) length for standard network connectivity·Snagless boot design protects RJ-45 clips from damage during plugging and unplugging·Stranded copper conductors minimize Near-End Crosstalk (NEXT) for reliable high-speed data·Cat6 performance for bandwidth-intensive voice, data, and video applications

Specifications

22 fields
Main specifications 8
Cable Diameter0.24 in (6.2 mm)
Cable Length50 ft (15.2 m)
Shield TypeUTP
Shipping Weight1.36 lbs (0.6 kg)
Wire Gauge24
Wiring SchemeT568B
Cable ShieldingUnshielded (UTP)
Cable TypeCat6
All other specifications 14
Category Performance ApplicationCat6
ColorWhite
Conductor MaterialCopper
Conductor StrandingStranded
Connector 1(1) RJ-45 Male(1) RJ-45 Male
Connector 2(1) RJ-45 Male(1) RJ-45 Male
Connector Hood MaterialPVC
Connector TypeBootedSnagless
Jacket RatingStandard / Non-Rated
Product TypeCable
UPC757120271666
CertificationsCENDAA 889Prop 65REACHRoHSTSCA
Jacket MaterialPVC
WarrantyLifetime

Resources

1 document · nothing behind a form

Questions about this part

What is the length and color of the C2G CG27166 cable?

The CG27166 is a 50 ft (15.2 m) cable in a white color finish.

Is this cable suitable for high-speed Gigabit networks?

Yes, this Cat6 patch cable is designed for Gigabit computer networks requiring high bandwidth for voice, data, or video distribution.

What wiring scheme does the CG27166 use?

This patch cable is terminated using the T568B wiring scheme with RJ-45 male connectors on both ends.

Does this cable include snagless boots for protection?

Yes, it features a molded, snagless boot to provide extra strain relief and protect the connector clips during installation.

What is the difference between this and the other C2G Cat6 series?

This SKU is a specific 50ft white variant; the series offers various lengths up to 150ft and 10 different colors for color-coding networks.
