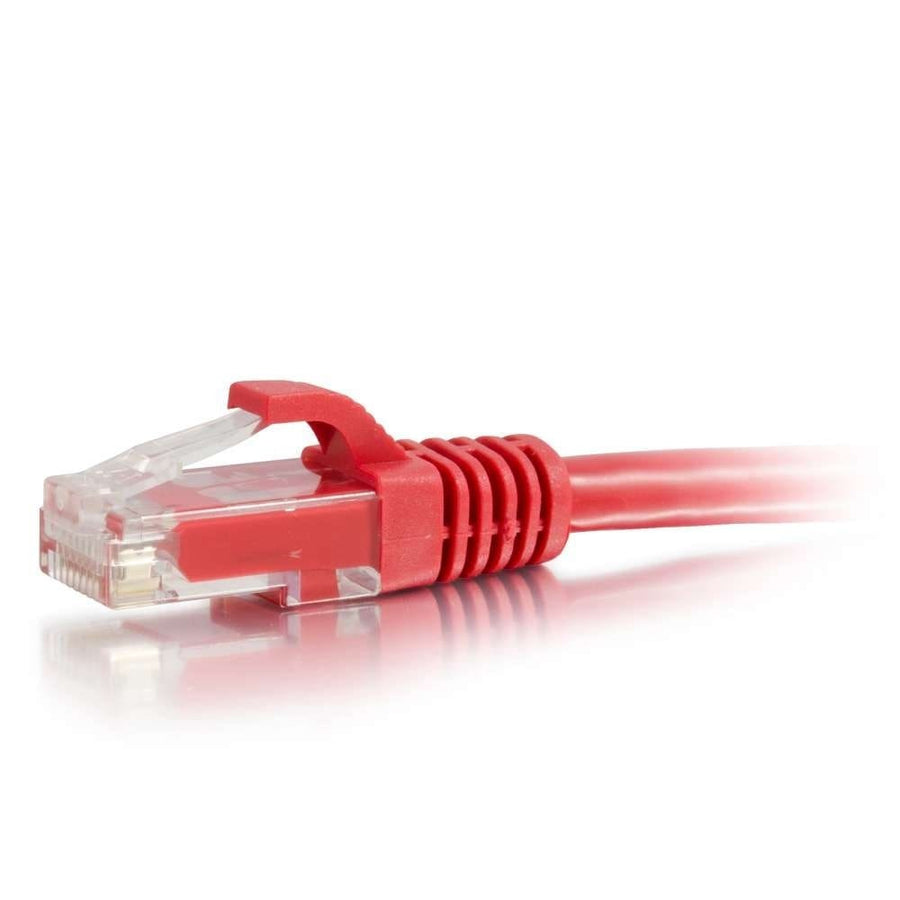

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Red
50ft Red Cat6 Unshielded UTP Ethernet patch cable with snagless boots for strain relief
The C2G CG27186 is a 50ft (15.2m) Cat6 Unshielded UTP Ethernet Network Patch Cable finished in red for easy color-coded organization. Designed for high-bandwidth applications, this cable supports fast Ethernet and Gigabit computer networks, making it suitable for voice, data, and video distribution. It is constructed with high-quality stranded copper conductors and meets all Cat6 TIA/EIA standards to ensure performance. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain twist-spacing from the conductor to the termination point. This design also helps to drastically reduce impedance and structural return loss (SRL). The cable features a 0.24 in (6.2 mm) diameter and uses a standard T568B wiring scheme. Each end is equipped with an RJ-45 Male connector protected by a molded, snagless PVC boot that provides extra strain relief and prevents the clips from catching during installation or removal.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.37 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271864 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will the CG27186 work with my Cat6 patch panel?
Yes, this cable is compatible with various Cat6 hardware, including the C2G 48-Port Rack Mount Patch Panel (SKU 48845CC6) and the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the maximum length available in this Cat6 series?
While this specific SKU is 50ft (15.2m), the Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
Is this cable suitable for high-speed Gigabit networking?
Yes, the CG27186 is designed for Gigabit computer networks and meets all Cat6 TIA/EIA standards to support bandwidth-intensive applications.
Does the snagless design prevent clip damage?
Yes, the molded snagless boot is designed to protect the RJ-45 clips during plugging and unplugging, providing additional strain relief.
What certifications does this cable hold?
This product is listed with CE, REACH, and RoHS certifications.
