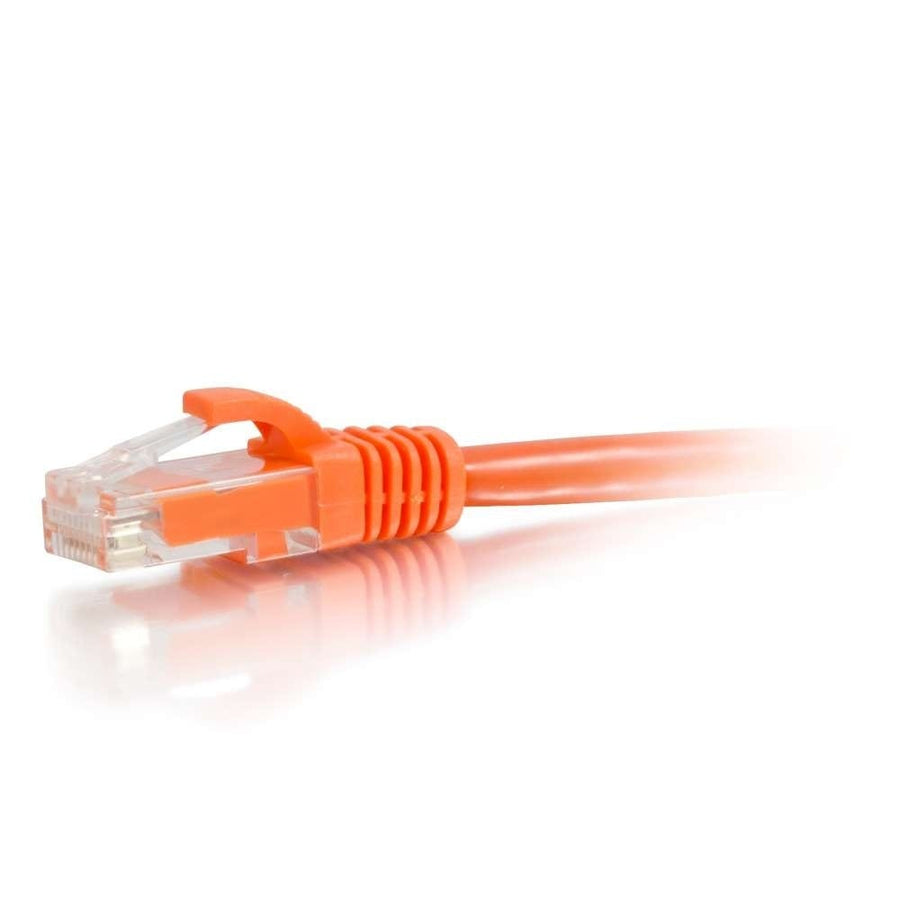

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
50ft Orange Cat6 Unshielded UTP Ethernet patch cable with snagless boots for high-bandwidth data distribution
The C2G CG27816 is a 50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, providing a solution that drastically reduces impedance and structural return loss (SRL). To maintain twist-spacing throughout the line up to the termination point, each individual pair is bonded together, which helps minimize Near-End Crosstalk (NEXT) levels. The cable features a 24 AWG stranded copper conductor and a PVC jacket. For ease of installation, the molded snagless boots protect the RJ-45 clips from damage during plugging and unplugging while providing extra strain relief. This orange patch cable is part of a series available in 10 different colors to assist with network color-coding and is available in lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.33 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278160 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video or data applications?
Yes, this Cat6 cable meets TIA/EIA standards and is designed for bandwidth-intensive voice, data, and video distribution applications.
What is the benefit of the snagless boot on the CG27816?
The molded snagless boot protects the RJ-45 clips from being damaged during plugging and unplugging and provides additional strain relief.
Is this cable suitable for color-coded network management?
Yes, this specific SKU is orange, and the series is available in 10 different colors to facilitate network color-coding.
Does this cable meet NDAA requirements?
The CG27816 is listed with NDAA 889 compliance in its specifications.
What is the maximum length available in this cable series?
While this SKU is 50ft, the C2G Snagless Patch Cable series is available in lengths up to 150ft.
