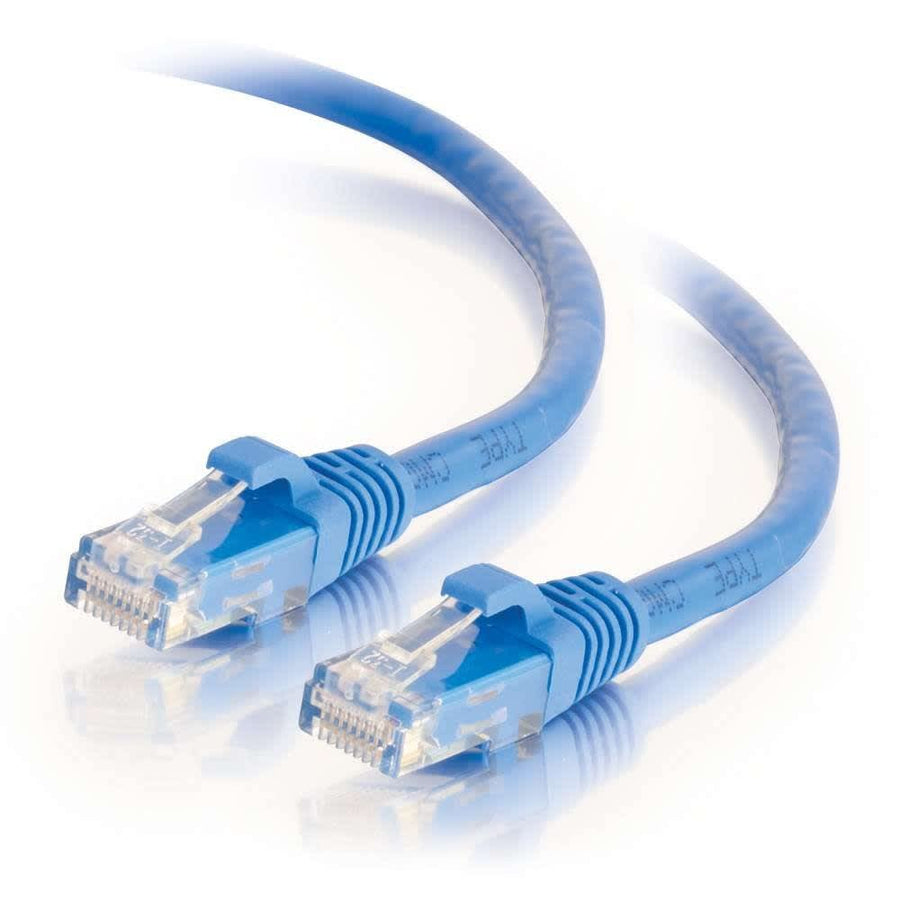

50ft (15.2m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
50ft Blue Cat6 Unshielded UTP patch cable with snagless boots and stranded copper conductors
The CG27146 is a 50 ft (15.2 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in blue, designed for high-bandwidth voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce impedance and structural return loss (SRL). It features high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together, which preserves the required twist-spacing throughout the entire line up to the termination point. The blue PVC jacket is paired with molded snagless boots that protect the RJ-45 clips during installation and provide additional strain relief. This UTP cable utilizes a T568B wiring scheme and a 24 AWG wire gauge. It is suitable for fast Ethernet and Gigabit computer networks requiring reliable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.35 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271468 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG27146 is designed for fast Ethernet and Gigabit computer networks that require high-bandwidth distribution for voice, data, or video.
What is the difference between this snagless cable and a standard RJ-45 cable?
The snagless design features a molded boot that protects the connector clips from being snapped off during installation and provides extra strain relief.
What do I need to complete a network installation using this cable?
This is a patch cable for connecting devices; you may also require hardware such as the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) or a 24-Port Rack Mount Patch Panel (SKU 24845CC6).
Is the CG27146 compliant with environmental and security standards?
Yes, this cable is compliant with REACH, RoHS, and TSCA standards, and is also NDAA 889 compliant.
What is the maximum length available in this series?
While this SKU is 50 ft (15.2 m), the Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
