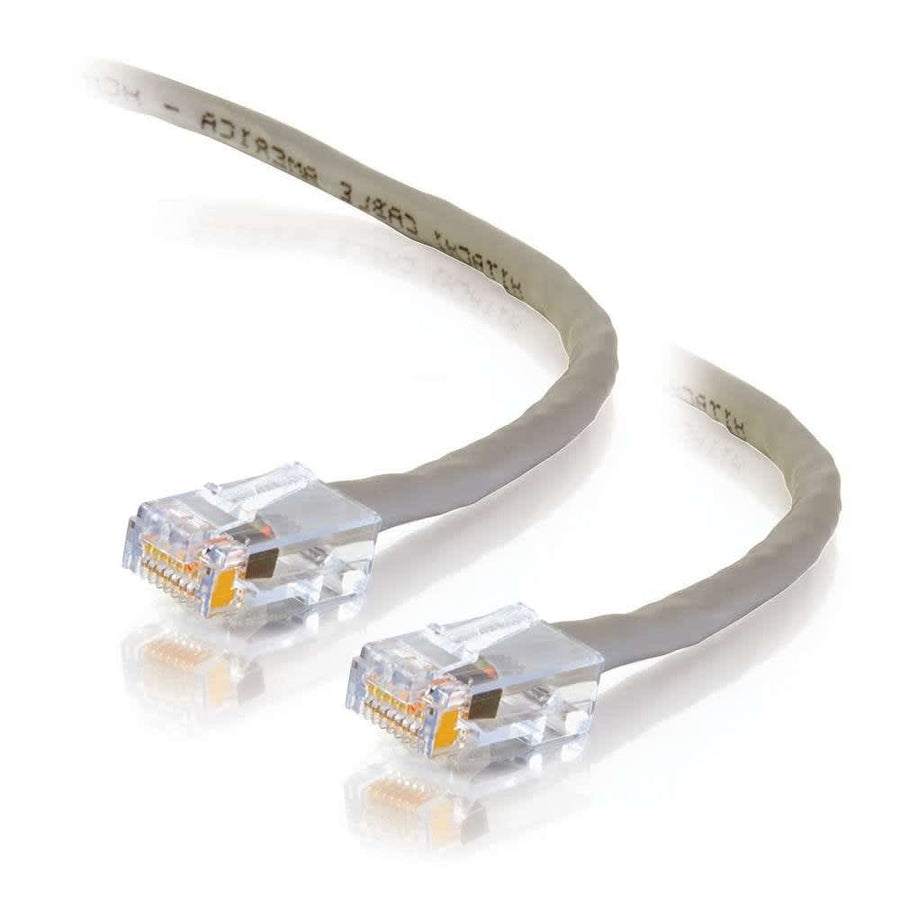

50ft (15.2m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Gray
50ft Cat6 UTP plenum-rated patch cable in gray, featuring 23AWG stranded copper conductors and RJ-45 connectors
The C2G CG15274 is a 50ft (15.2 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed to meet the rigorous installation requirements of plenum spaces. This cable is suitable for routing through dropped ceilings or under raised floors in commercial environments like schools and hospitals where air circulation occurs. It features a CMP-rated and FT6-rated PVC jacket, ensuring it meets strict building codes for plenum applications. The cable utilizes 23AWG stranded copper conductors, which helps reduce impedance and structural return loss (SRL) while minimizing Near-End Crosstalk (NEXT) levels. Each end is terminated with 50 micron gold plated RJ-45 male connectors. This TAA compliant cable is tested to 550MHz and meets TIA/EIA-568-C.2 standards, making it capable of handling bandwidth-intensive voice, data, and video distribution applications. This gray cable is part of a series that is also available in blue and black to assist with network color-coding.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152743 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Where can I use the CG15274 patch cable?
The CG15274 is a plenum-rated (CMP/FT6) cable, making it suitable for routing through plenum spaces such as the air spaces above dropped ceilings or under raised floors in commercial buildings.
Is the CG15274 TAA compliant for government contracts?
Yes, this CG15274 Cat6 cable is TAA compliant and meets NDAA 889 requirements.
What type of conductors are used in this Cat6 cable?
The CG15274 uses 23AWG stranded copper conductors and is an unshielded (UTP) design.
What other colors are available in this Cat6 series?
This specific SKU is gray, but the series is also available in blue and black for color-coded network installations.
What performance standards does this cable meet?
The CG15274 is tested to 550MHz and complies with the TIA/EIA-568-C.2 standard.
