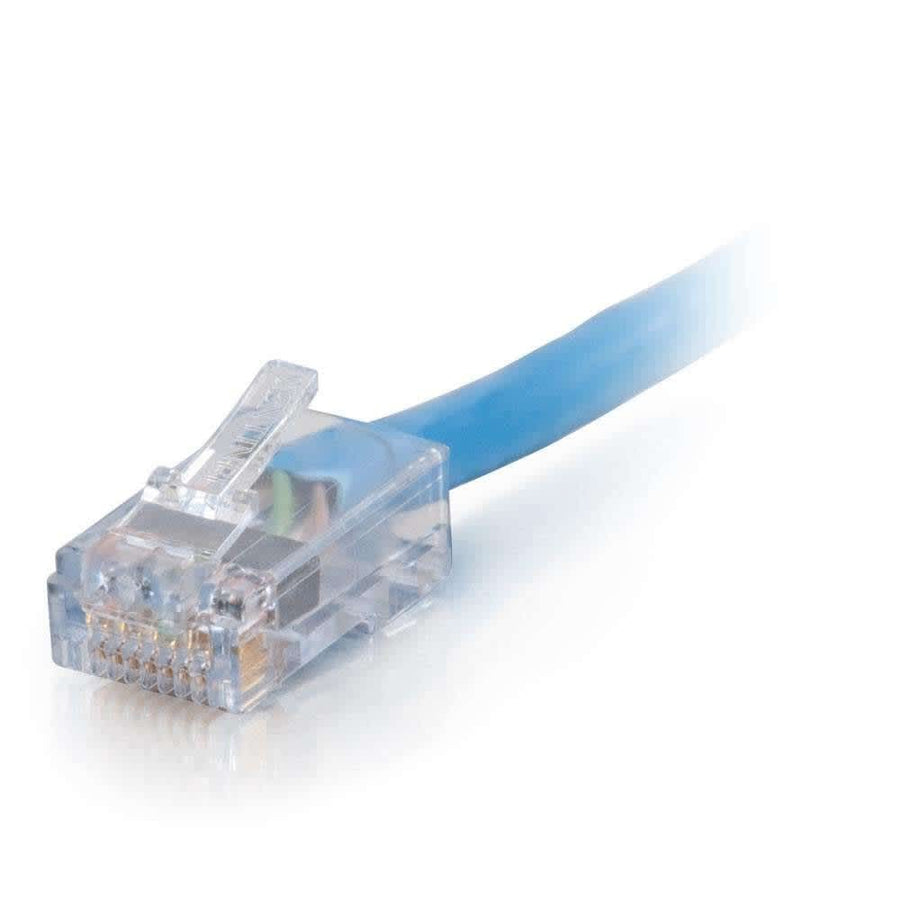

50ft (15.2m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
50ft Cat6 UTP plenum patch cable, Blue finish, CMP and FT6 rated for plenum space installations
The C2G CG15287 is a 50ft (15.2 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed specifically for use in plenum spaces. Because building codes require specialized cabling for air-handling environments, this CMP and FT6 rated cable is suitable for routing through dropped ceilings in commercial settings like schools or hospitals. It features 23AWG solid copper conductors with stranded construction to maintain signal integrity. This cable is tested to 550MHz and meets all TIA/EIA-568-C.2 standards, helping to minimize Near-End Crosstalk (NEXT) and reduce impedance and structural return loss (SRL). Each end is equipped with 50 micron gold plated RJ-45 male connectors in a non-booted style. This Blue cable is TAA compliant and is ideal for high-bandwidth voice, data, and video distribution applications.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152873 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the CG15287 suitable for plenum air spaces?
Yes, this cable features a plenum-rated jacket with CMP and FT6 ratings, making it compliant for use in plenum spaces like dropped ceilings.
Will this Cat6 cable work with my network patch panel?
This cable is compatible with various Cat6 hardware, including the 48-Port Rack Mount Patch Panel (SKU: 48845CC6) and the 24-Port Rack Mount Patch Panel (SKU: 24845CC6).
What is the maximum bandwidth for this CG15287 cable?
This Cat6 patch cable is tested to 550MHz and meets TIA/EIA-568-C.2 standards for high-bandwidth data distribution.
Is this cable TAA compliant for government contracts?
Yes, the CG15287 is TAA compliant and meets NDAA 889 requirements.
What type of RJ45 connectors are used on this cable?
The cable uses non-booted, 50 micron gold plated RJ-45 male connectors on both ends.
