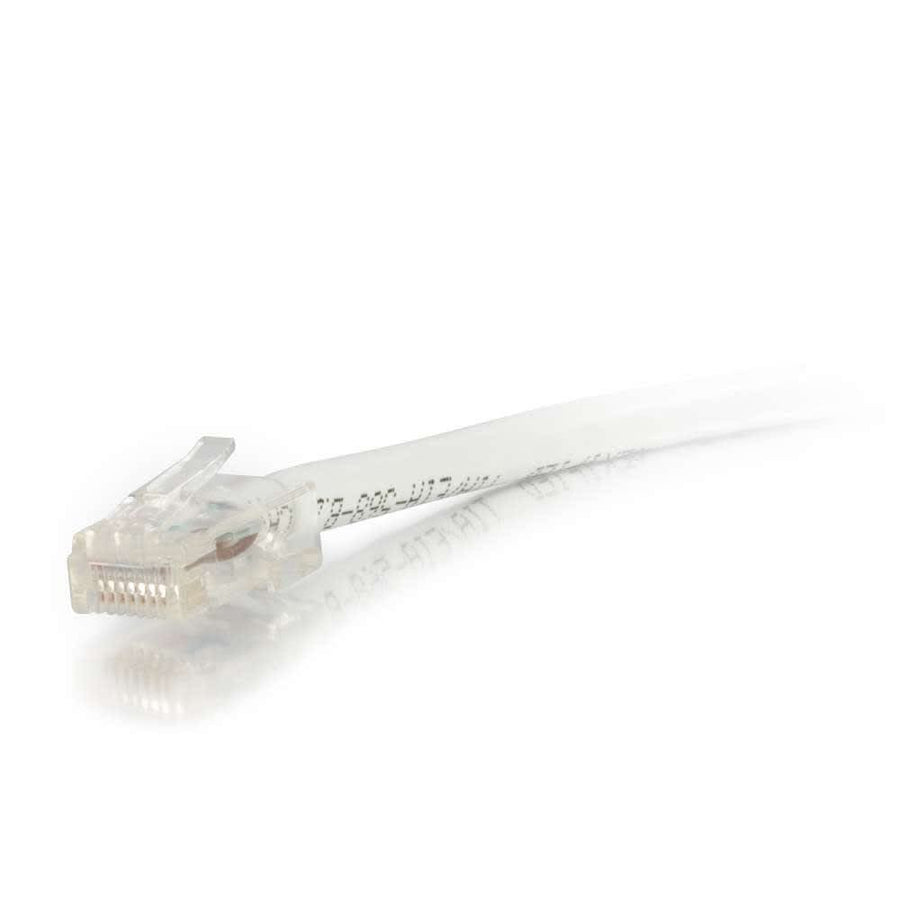

50ft (15.2m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
50ft Cat6 Unshielded UTP Ethernet patch cable in white, featuring stranded copper conductors and T568B wiring
The C2G CG04249 is a 50ft (15.2 m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution. This cable is built for fast Ethernet and Gigabit computer networks that require reliable performance. Each pair is bonded together to maintain twist-spacing from the connector to the termination point, which significantly reduces Near-End Crosstalk (NEXT) levels. The construction utilizes high-quality stranded copper conductors to minimize impedance and structural return loss (SRL) in bandwidth-intensive applications. This white patch cable features an RJ-45 male to RJ-45 male connector type with a non-booted design. It follows the T568B wiring scheme and is rated for temperatures up to 75°C. The cable diameter is 0.24 in (6 mm) with a PVC jacket. This Cat6 cable is ideal for professional installers needing a reliable solution for network connectivity in office or residential environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.37 lbs (0.6 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042495 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04249?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is the C2G CG04249 suitable for Gigabit networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for data, voice, or video.
What materials are used in the construction of this cable?
The cable features stranded copper conductors and a PVC jacket with a 0.24 in (6 mm) diameter.
Does this cable include any specialized accessories?
This SKU is a standalone patch cable; however, it is compatible with various accessories like the SOHOTest-E™ Residential Cable Tester or the Psiber Pinger Plus Network IP Tester.
What is the temperature rating for this Ethernet cable?
This C2G patch cable is rated for operation in temperatures up to 75°C.
