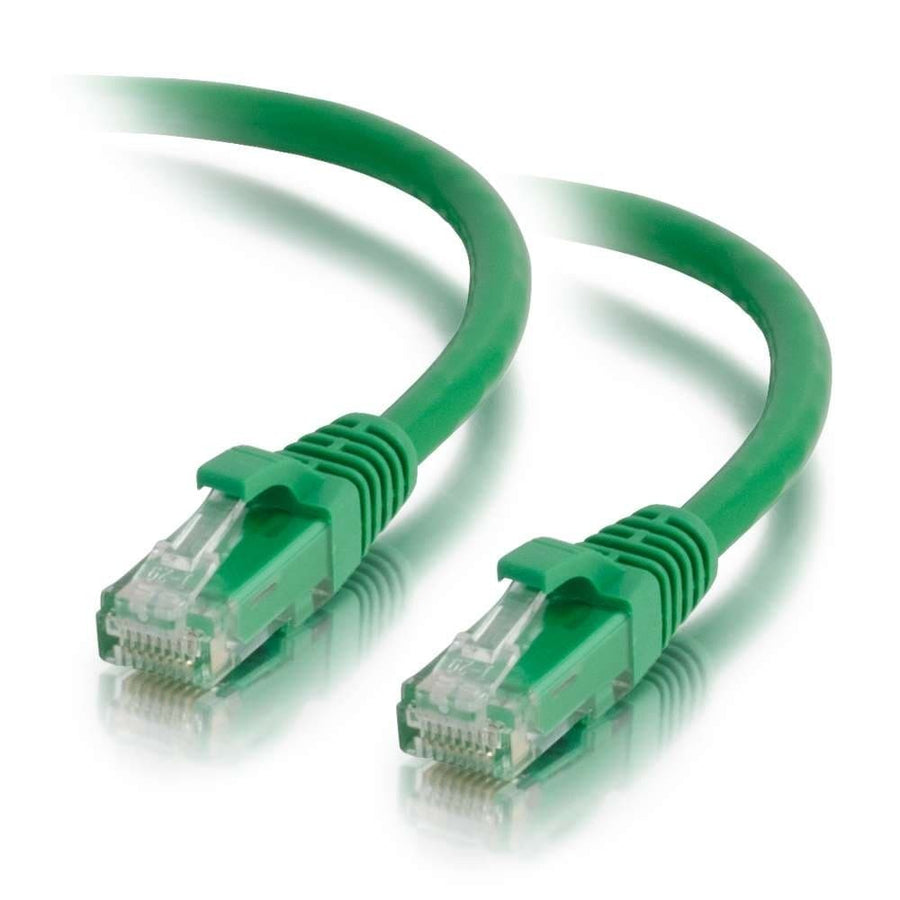

50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
50ft Cat5e Unshielded UTP Ethernet patch cable in green with snagless boots for strain relief
The C2G CG20036 is a 50 ft (15.2 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This green cable features stranded copper conductors and a PVC jacket, ensuring high performance for fast Ethernet networks. The design meets all Cat5e TIA/EIA standards, which helps to drastically reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain consistent twist-spacing from the connector to the termination point. For easier installation and long-term durability, the cable is equipped with molded, snagless boots that protect the RJ-45 clips from damage during plugging and unplugging while providing extra strain relief. This cable utilizes a T568B wiring scheme and offers a bandwidth of 350 mHz. It is built with a 24 AWG wire gauge and a cable diameter of 0.21 in (5.3 mm). This unshielded twisted pair cable is an ideal choice for color-coded network deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.13 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120200369 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Is the C2G CG20036 suitable for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for bandwidth-intensive applications including voice, data, and video distribution, meeting all TIA/EIA standards.
What is the purpose of the snagless boot on this cable?
The molded snagless boot protects the RJ-45 clips from being damaged during installation and provides additional strain relief to the connection.
Can I use this cable for color-coded networking?
Yes, this SKU is Green, but the Cat5e Snagless series is available in 10 different colors to facilitate organized network identification.
Does this cable include the necessary RJ-45 connectors?
The CG20036 features two RJ-45 Male connectors with PVC hood material and a snagless design for secure termination.
What are the electrical specifications for the CG20036?
This cable features a maximum conductor DC resistance of 89 Ohm/km and a minimum insulation resistance of 100 Ohm/km.
