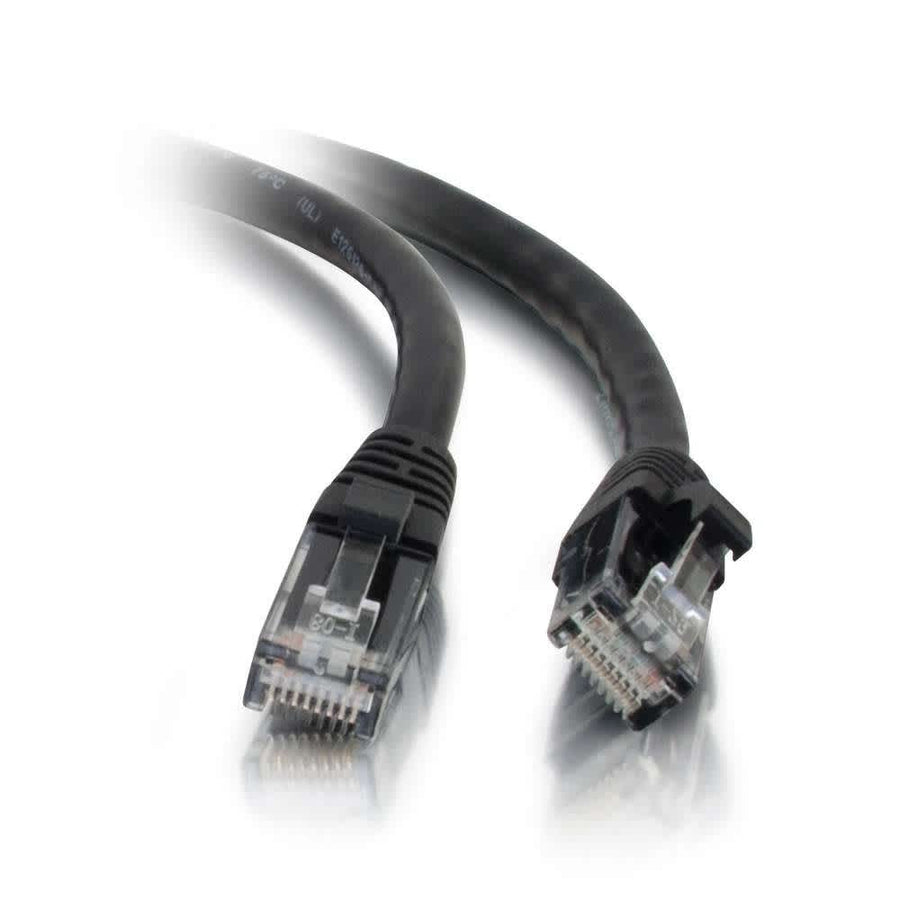

50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in Black
The C2G CG20038 is a 50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for fast Ethernet networks. This cable is built for bandwidth-intensive applications, including voice, data, and video distribution. It is constructed with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the 15.2 m length, up to the termination point. This design helps reduce impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and uses a T568B wiring scheme. For installation ease, the molded snagless boots protect the RJ-45 male clips from damage during plugging and unplugging, while providing additional strain relief. This Black jacketed cable is TIA/EIA compliant and carries CE, REACH, and RoHS certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.03 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120200383 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
50ft (15.2m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG20037$30.99
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Questions about this part
What is the difference between the CG20038 and the blue version?
The CG20038 is the Black color variant, while the CG20037 is the Blue version of the same 50ft Cat5e snagless cable.
Will this cable work for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for bandwidth-intensive video, data, or voice distribution applications and meets all TIA/EIA standards.
What kind of connectors does this patch cable use?
This cable is equipped with two RJ-45 male connectors featuring snagless, booted designs for added protection.
Does this cable require any specific installation tools?
While this is a pre-terminated patch cable, standard installation environments typically require a crimping tool or punch-down tool for related modular components.
Is this cable TAA compliant?
The product record for the CG20038 lists CE, REACH, and RoHS certifications, but does not specify TAA compliance.
