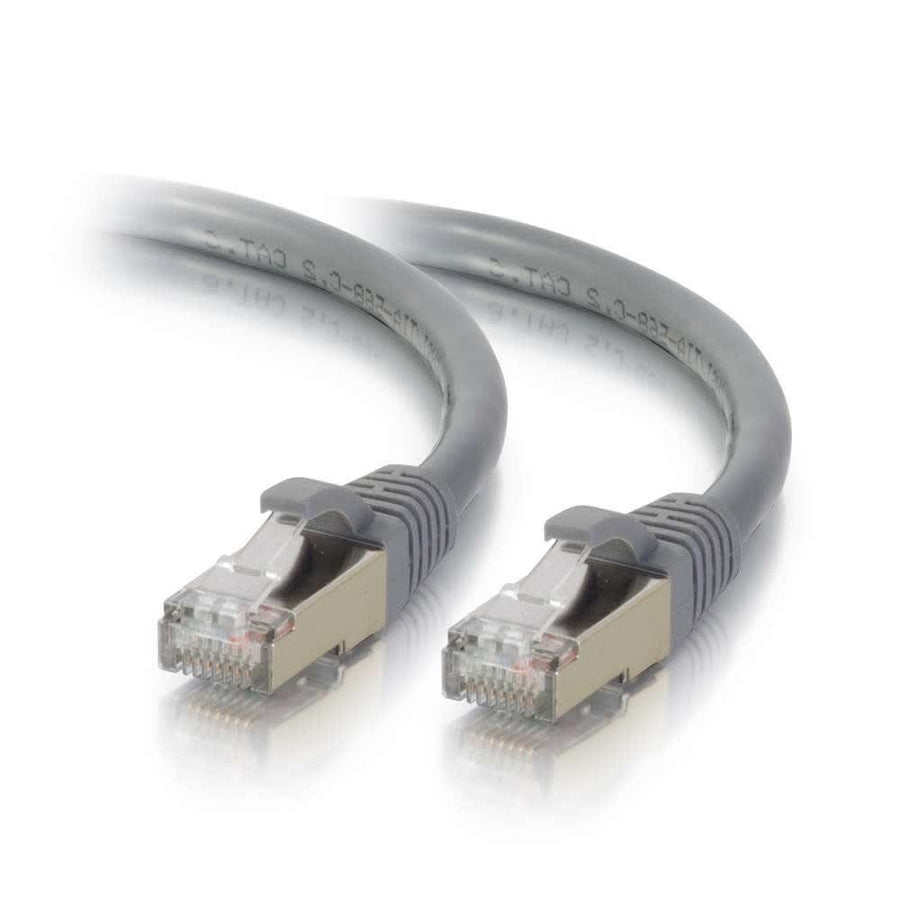

50ft (15.2m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Gray
50ft shielded Cat5e patch cable with snagless boots and 24 AWG stranded copper conductors for EMI/RFI protection
The C2G CG27270 is a 50ft (15.2m) Cat5e shielded STP Ethernet network patch cable designed for high-interference environments. This cable utilizes F/UTP construction, featuring an overall cable foil shield and a drain wire to provide robust protection against EMI/RFI noise. The internal conductors are 24 AWG stranded copper, arranged in a 4-pair configuration and wired to the TSB 568B (AT+T 258A) standard. For reliable connectivity in demanding setups, the cable is equipped with shielded, 50 micron gold-plated RJ45 male connectors. Each end features a snagless, booted connector made of PVC to provide extra strain relief and increased durability during installation. This gray patch cable is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C) and is TIA/EIA compliant. To ensure maximum protection against electromagnetic interference throughout your entire signal path, it is recommended to use this cable in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 1.28 lbs (0.6 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272700 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this cable work in high-interference environments?
Yes, the CG27270 uses F/UTP shielding with an overall cable foil and drain wire to protect against EMI/RFI noise and electromagnetic interference.
What is required for complete end-to-end shielding?
For maximum protection against interference, you should use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What connector type and wiring standard does the CG27270 use?
This cable uses shielded RJ45 male connectors with a snagless, booted design and follows the TSB 568B (AT+T 258A) wiring standard.
Is this cable suitable for outdoor or extreme temperature use?
The cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
What are the conductor specifications for this patch cable?
The CG27270 features 24 AWG stranded copper conductors in a 4-pair configuration.
